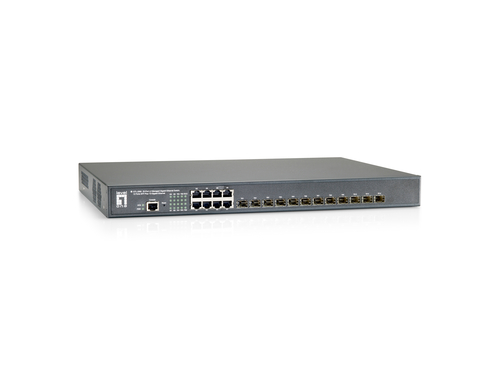

LevelOne 20-Port L2 Managed Gigabit Ethernet Switch, 12 Ports SFP+ 10-Gigabit

LevelOne 20-Port L2 Managed Gigabit Ethernet Switch, 12 Ports SFP+ 10-Gigabit

Model GTL-2060EAN 4015867194317

65 specifications

Memory256 MB
Weight3.9 kg
ColourGrey
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8
10G supportYes

See all specifications

Overview

Memory: 256 MB
Weight: 3.9 kg
Colour: Grey
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8
10G support: Yes

Brand: LevelOne
Category: Network Switch
Model: GTL-2060
Part number: GTL-2060
EAN / UPC: 4015867194317
Also known as: LevelOne 20-Port L2 Managed Gigabit Ethernet Switch, 12 Ports SFP+ 10-Gigabit

Specifications

65 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	12
Console port	RJ-45

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN

Data transmission

Specification	Value
MAC address table	32768 entries
Switching capacity	256 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148000 pps

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Admin-edge port	Yes
BPDU filtering/protection	Yes
Loop protection	Yes

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	SNMP, TFTP
Supported network protocols	IPv6, IPv4

Design

Specification	Value
Product colour	Grey
Reset button	Yes
LED indicators	Activity, Link, Power
On/off switch	Yes

Performance

Specification	Value
Internal memory	256 MB
Buffer size	24000 KB

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	442.5 mm
Depth	315 mm
Height	44 mm
Weight	3.9 kg

Packaging content

Specification	Value
Cables included	AC
Quick start guide	Yes
Manual	Yes

Packaging data

Specification	Value
Mounting brackets included	Yes
Package type	Box
Package width	382 mm
Package depth	140 mm
Package height	540 mm
Package weight	5.22 kg

Certificates

Specification	Value
Certification	CE, RoHS

Logistics data

Specification	Value
Country of origin	China
