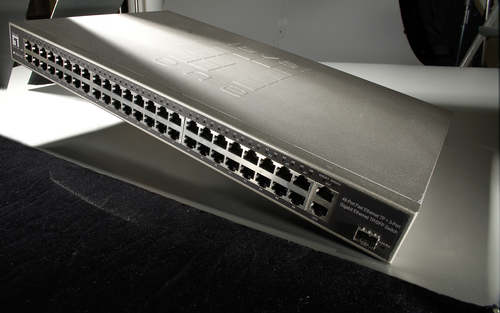

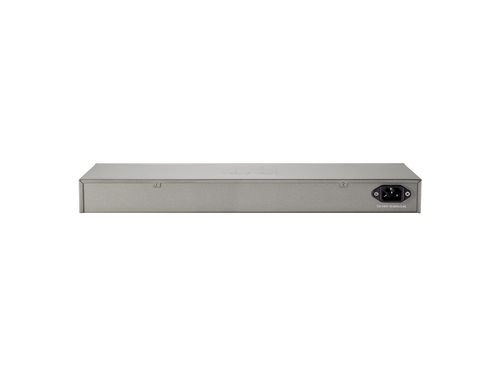

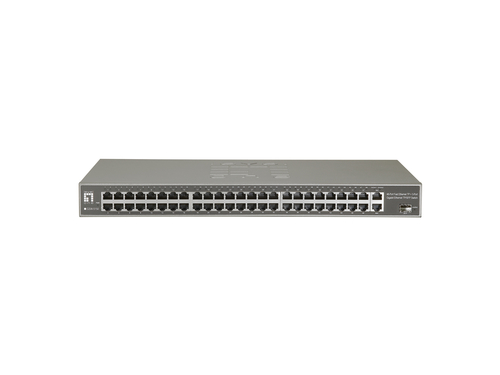

LevelOne 51-Port Fast Ethernet Switch, 2 x Gigabit RJ45, 1 x Gigabit SFP
Model GSW-5150EAN 5711045387692
42 specifications
- ColourGrey
- Basic switching RJ-45 Ethernet ports quantity48
- Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
- Transmission distance (max)70 km
- MAC address table8192 entries
- Rack mountingYes
Overview
- Colour
- Grey
- Basic switching RJ-45 Ethernet ports quantity
- 48
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Transmission distance (max)
- 70 km
- MAC address table
- 8192 entries
- Rack mounting
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GSW-5150
- Part number
- GSW-5150
- EAN / UPC
- 5711045387692, 4005922210014, 4005922245412, 4005922516741 +3 more
- Also known as
- LevelOne 51-Port Fast Ethernet Switch, 2 x Gigabit RJ45, 1 x Gigabit SFP
Specifications
42 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 48 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 1 |
| Fiber optic connector | SFP |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 70 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 15.6 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 0.128 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| LED indicators | Activity, Link, Power |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 260 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 340 mm |
| Package depth | 534 mm |
| Package height | 90 mm |
| Package weight | 4.18 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
