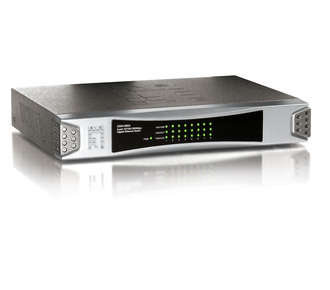

LevelOne GSW-2420 24 Port Gigabit Switch
Model GSW-2420 24 Port Gigabit SwitchPart no. GSW-2420EAN 878742003135
28 specifications
- Speed1 Gbit/s
- ConnectivityWired
- ColourSilver
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- Full duplexYes
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Colour
- Silver
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Full duplex
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GSW-2420 24 Port Gigabit Switch
- Part number
- GSW-2420
- EAN / UPC
- 878742003135, 4015867130728
- Also known as
- LevelOne GSW-2420 24 Port Gigabit Switch Managed Silver
Specifications
28 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 48 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.5 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Silver |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 21.6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 270 x 43 x 187 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Packet transfer speed | 14880/148800/1488000 p/s |
| Power requirements | 100-240VAC / 50-60Hz |
| Non-operating relative humidity (non-condensing) | 10 - 90% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC class A, CE, VCCI Class A |
