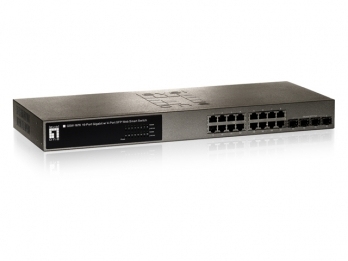

LevelOne GSW-1676 16 Port Web Smart Switch
Model GSW-1676 16 Port Web Smart SwitchPart no. GSW-1676EAN 4015867131916
38 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight1.6 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 1.6 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GSW-1676 16 Port Web Smart Switch
- Part number
- GSW-1676
- EAN / UPC
- 4015867131916
- Also known as
- LevelOne GSW-1676 16 Port Web Smart Switch Managed L3+ Black
Specifications
38 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 20 |
| SFP module slots quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-T, 10BASE-T |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 32 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.4 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 28 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 440 x 171 x 44 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Number of simultaneous users | 255 user(s) |
| Power requirements | 100-240VAC / 50-60Hz |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE FCC Part 15 Class A |
