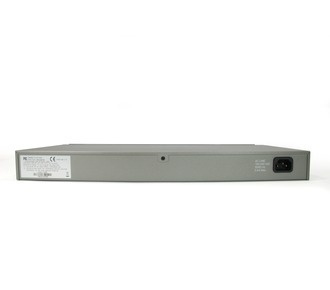

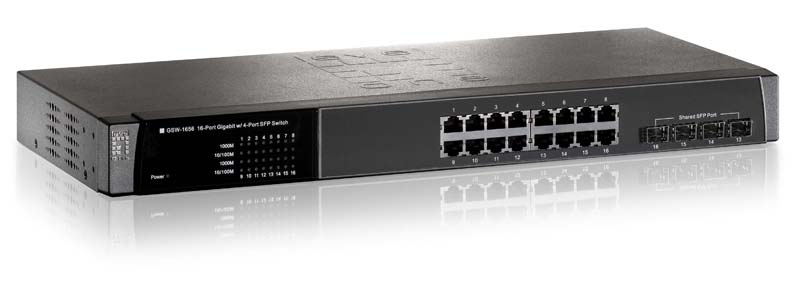

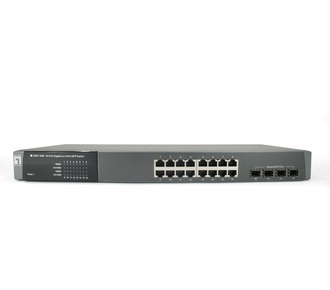

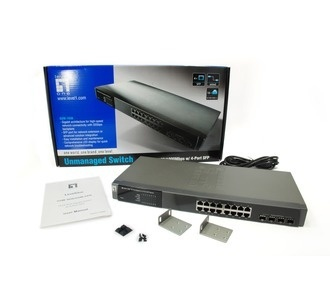

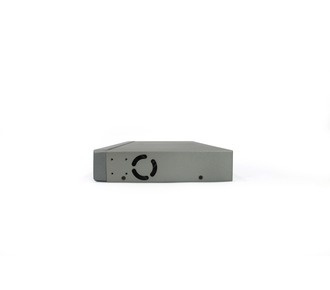

LevelOne GSW-1656 network switch Unmanaged Black
Model GSW-1656EAN 4015867132883
26 specifications
- Speed1 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GSW-1656
- Part number
- GSW-1656
- EAN / UPC
- 4015867132883, 5055205187075
- Also known as
- LevelOne GSW-1656 network switch Unmanaged Black
Specifications
26 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| SFP/SFP+ slots quantity | 4 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 32 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.500 MB |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 11.15 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 130 x 44 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Power requirements | 100-240VAC / 50-60Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS, FCC Class A, CE, VCCI Class A |
What people say
Reviews & ratings
LevelOne GSW-1656 network switch Unmanaged Black
No reviews yet
Be the first to tell others how LevelOne GSW-1656 network switch Unmanaged Black works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare LevelOne GSW-1656 network switch Unmanaged Black

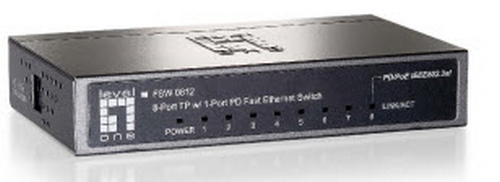

All network switch comparisons- LevelOne GSW-1656 network switch Unmanaged Black vsLevelOne FSW-0812 network switch Unmanaged Power over Ethernet (PoE)Compare specs

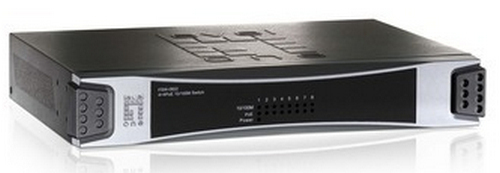

- LevelOne GSW-1656 network switch Unmanaged Black vsLevelOne FSW-0822 network switch Unmanaged Power over Ethernet (PoE)Compare specs
- LevelOne GSW-1656 network switch Unmanaged Black vsLevelOne GSW-1621 network switch UnmanagedCompare specs
- LevelOne GSW-1656 network switch Unmanaged Black vsLevelOne GEL-2870 network switch Managed L2 BlackCompare specs

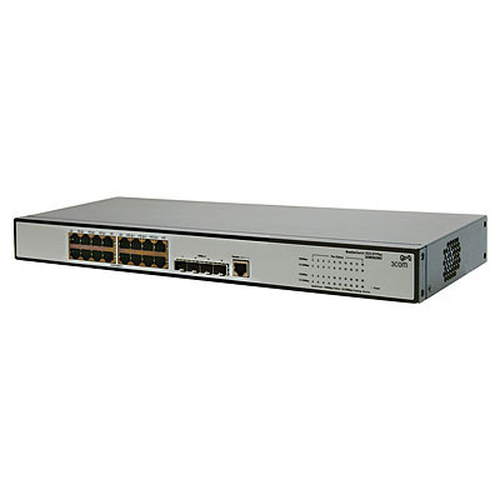

- LevelOne GSW-1656 network switch Unmanaged Black vsHP V V1910-16G Managed L2+Compare specs
- LevelOne GSW-1656 network switch Unmanaged Black vsHP V V1910-24G Managed L2+Compare specs

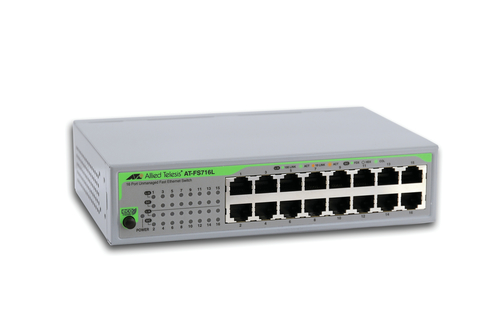

- LevelOne GSW-1656 network switch Unmanaged Black vsAllied Telesis AT-FS716L-50 UnmanagedCompare specs

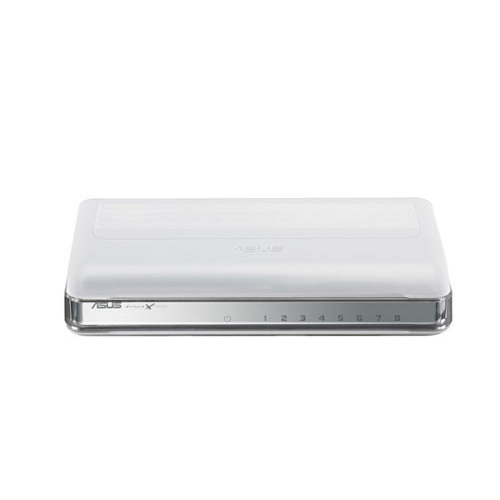

- LevelOne GSW-1656 network switch Unmanaged Black vsASUS GX1008B Unmanaged WhiteCompare specs
