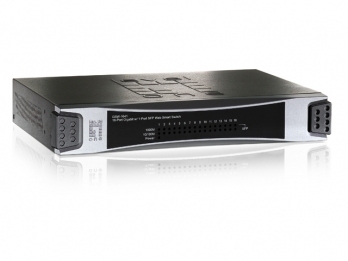

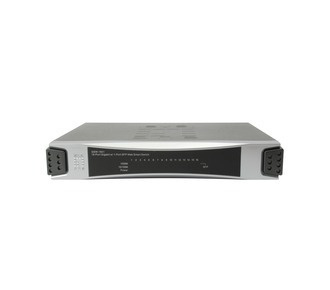

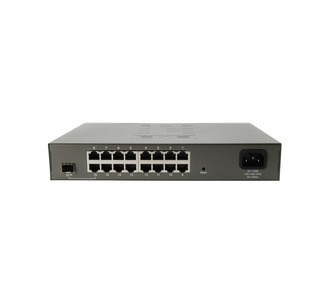

LevelOne GSW-1641 network switch Managed Black
Model GSW-1641
33 specifications
- Speed1 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity16
- Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Copper ethernet cabling technology
- 1000BASE-T, 100BASE-TX, 10BASE-T
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GSW-1641
- Part number
- GSW-1641
- Also known as
- LevelOne GSW-1641 network switch Managed Black
Specifications
33 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| SFP module slots quantity | 1 |
| SFP/SFP+ slots quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 32 Gbit/s |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.340 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14.4 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 270 x 43 x 187 mm |
| Connectivity technology | Wired |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Packet transfer speed | 14880/148800/1488000 p/s |
| Power requirements | 100-240VAC / 50-60Hz |
| Non-operating relative humidity (non-condensing) | 10 - 90% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature (T-T) | 32 - 104 °F |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC class A, CE, VCCI Class A |
