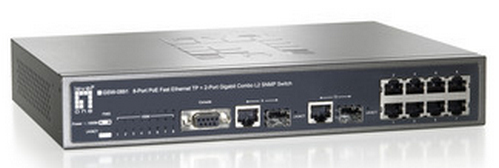

LevelOne GSW-0891 network switch Managed L2 Power over Ethernet (PoE)

LevelOne GSW-0891 network switch Managed L2 Power over Ethernet (PoE)

Model GSW-0891EAN 4015867141977

52 specifications
  • Speed1 Gbit/s
  • ConnectivityWired
  • Switch typeManaged
  • Basic switching RJ-45 Ethernet ports quantity10
  • 10G supportNo
  • MAC address table8000 entries
See all specifications

Overview

Speed
1 Gbit/s
Connectivity
Wired
Switch type
Managed
Basic switching RJ-45 Ethernet ports quantity
10
10G support
No
MAC address table
8000 entries
Brand
LevelOne
Model
GSW-0891
Part number
GSW-0891
EAN / UPC
4015867141977
Also known as
LevelOne GSW-0891 network switch Managed L2 Power over Ethernet (PoE)

Specifications

52 specifications in 14 groups

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
MIB supportRFC 1215 Trap, RFC1213 MIBII, RFC 1157 SNMP MIB, RFC 1493 Bridge MIB, RFC 2674 VLAN MIB, RFC 1643, RFC 1757, RSTP MIB, Private MIB, PoE MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity10
Combo SFP ports quantity2
SFP/SFP+ slots quantity1
Power connectorDC-in jack

Network

Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G supportNo
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Port mirroringYes
Full duplexYes
Broadcast storm controlYes
Flow control supportYes
Link aggregationYes
Rate limitingYes
Spanning tree protocolYes
Number of VLANs4096

Data transmission

MAC address table8000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity5.6 Gbit/s
Maximum data transfer rate1 Gbit/s
Packet buffer memory1 MB

Security

DHCP featuresDHCP server, DHCP client
IGMP snoopingYes
MAC address filteringYes
Security algorithms802.1x RADIUS

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMP v1 v2c, v3/ Web/Telnet/CLI
Switching protocolsCSMA/CD
Supported network protocolsDNS, LLDP, IGMP, TFTP, SMTP, SNTP

Design

StackableYes
Number of fans1 fan(s)
SafetyUL, cUL, CE/EN60950-1

Performance

Firmware upgradeableYes

Power

Redundant power supply (RPS) supportYes
Power consumption (typical)135 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes

Other features

Dimensions (WxDxH)270 x 210 x 44 mm
Connectivity technologyWired
Bandwidth0.25 Gbit/s
Authentication methodIP
Networking featuresFast Ethernet
Power requirements48V DC
Power supply200 W
Connectivity LEDsYes
I/O ports1 x D-Sub 9-pin

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%

Certificates

CertificationFCC A, CE
