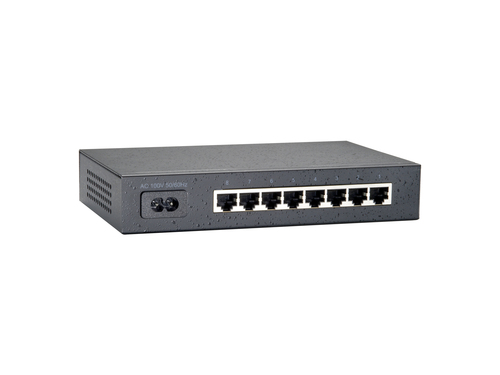

LevelOne 8-Port Gigabit Switch
Model GSW-0809EAN 4015867148525
43 specifications
- Weight900 g
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 900 g
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GSW-0809
- Part number
- GSW-0809
- EAN / UPC
- 4015867148525, 4055895956617, 5711045914577
- Also known as
- LevelOne 8-Port Gigabit Switch
Specifications
43 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 754308.6474 h |
Power
| Specification | Value |
|---|---|
| DC input voltage | 3.3 V |
| Input current | 2 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 120 mm |
| Height | 35 mm |
| Weight | 900 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DC |
| Quick start guide | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 217 mm |
| Package depth | 64 mm |
| Package height | 260 mm |
| Package weight | 1 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 270 mm |
| Master (outer) case length | 230 mm |
| Master (outer) case height | 540 mm |
| Master (outer) case gross weight | 8.2 kg |
| Products per master (outer) case | 8 pc(s) |
