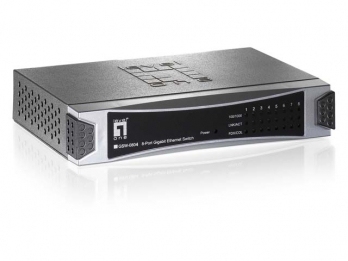

LevelOne GSW-0804 network switch Unmanaged Silver
Model GSW-0804
23 specifications
- Speed1 Gbit/s
- ConnectivityWired
- ColourSilver
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- Full duplexYes
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Colour
- Silver
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Full duplex
- Yes
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GSW-0804
- Part number
- GSW-0804
- Also known as
- LevelOne GSW-0804 network switch Unmanaged Silver
Specifications
23 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.144 MB |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 7.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 100 x 165 x 32.5 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1488000 p/s |
| Power requirements | 100 - 240 VAC, 50 - 60 Hz |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC class A, CE |
