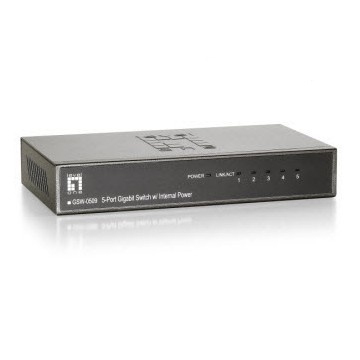

LevelOne GSW-0509 Gigabit Switch 5-Port

LevelOne GSW-0509 Gigabit Switch 5-Port

Model GSW-0509 Gigabit Switch 5-PortPart no. GSW-0509EAN 8787420066008

27 specifications
  • Speed1 Gbit/s
  • ConnectivityWired
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity5
  • Copper ethernet cabling technology100BASE-TX, 10BASE-T
  • MAC address table1000 entries
See all specifications

Overview

Speed
1 Gbit/s
Connectivity
Wired
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
5
Copper ethernet cabling technology
100BASE-TX, 10BASE-T
MAC address table
1000 entries
Brand
LevelOne
Model
GSW-0509 Gigabit Switch 5-Port
Part number
GSW-0509
EAN / UPC
8787420066008, 878742006600, 4014619298099, 4015867148518 +2 more
Also known as
LevelOne GSW-0509 Gigabit Switch 5-Port Unmanaged

Specifications

27 specifications in 10 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity5
Gigabit Ethernet (copper) ports quantity5
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology100BASE-TX, 10BASE-T
Full duplexYes

Data transmission

MAC address table1000 entries
Supported data transfer rates10/100/1000 Mbps
Switching capacity10 Gbit/s
Maximum data transfer rate1 Gbit/s
Jumbo frames supportYes
Packet buffer memory0.1 MB

Design

StackableYes
LED indicatorsPower

Power

Power consumption (typical)3.15 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Dimensions (WxDxH)85 x 150 x 25 mm
Connectivity technologyWired
Networking featuresEthernet, Fast Ethernet, Gigabit Ethernet
Packet transfer speed14880/148800/1488000 p/s
Power requirements100-240V AC, 5V/2A
Connectivity LEDsYes
Non-operating relative humidity (non-condensing)10 - 90%

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating temperature (T-T)32 - 104 °F

Certificates

CertificationFCC Class B, CE VCCI
