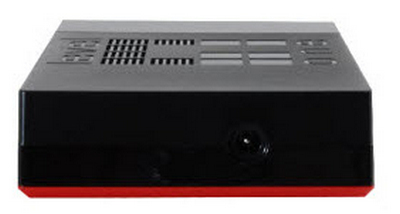

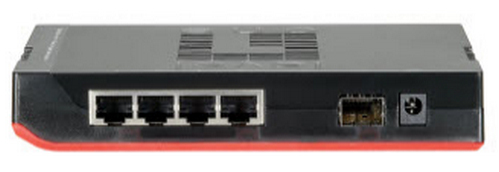

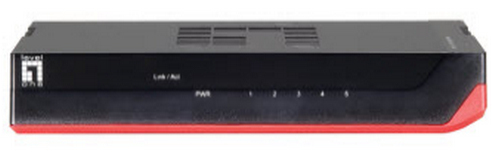

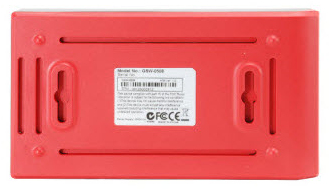

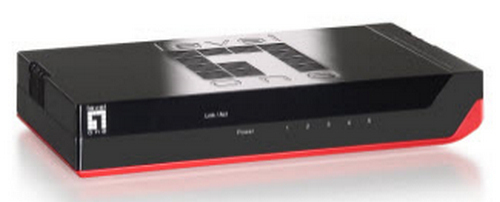

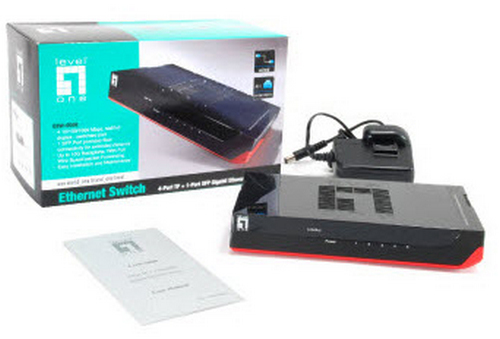

LevelOne GSW-0508 network switch Unmanaged
Model GSW-0508EAN 878742005245
29 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table1000 entries
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 1000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GSW-0508
- Part number
- GSW-0508
- EAN / UPC
- 878742005245, 4015867144817
- Also known as
- LevelOne GSW-0508 network switch Unmanaged
Specifications
29 specifications in 9 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| SFP module slots quantity | 1 |
| SFP/SFP+ slots quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.016 MB |
Design
| Specification | Value |
|---|---|
| Stackable | No |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 154.5 x 85 x 26 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Power requirements | 12V DC, 1 A |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
