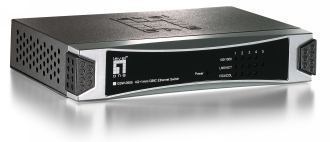

LevelOne GSW-0505 network switch Unmanaged
Model GSW-0505EAN 4015867123638
36 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight450 g
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 450 g
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GSW-0505
- Part number
- GSW-0505
- EAN / UPC
- 4015867123638
- Also known as
- LevelOne GSW-0505 network switch Unmanaged
Specifications
36 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| SFP module slots quantity | 1 |
| SFP/SFP+ slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.125 MB |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| LED indicators | LAN, Link, Power, Status, Yes |
Power
| Specification | Value |
|---|---|
| Input current | 1.3 A |
| Input voltage | 12 V |
| Power consumption (typical) | 7.5 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 165 x 100 x 32.5 mm |
| Connectivity technology | Wired |
| Bandwidth | 10 Gbit/s |
| Networking features | Gigabit Ethernet |
| Packet transfer speed | 1488000 pps |
| Power LED | Yes |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 32 - 113 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 450 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
