GEU-2432 24-Port Gigabit Ethernet Switch, 4-Mode DIP Button
19" Rackmount Unmanaged Switch
Model GEU-2432Part no. 53016817101EAN 4015867241264
52 specifications
- Noise0 dB
- Type1U
- Weight1.33 kg
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Noise
- 0 dB
- Type
- 1U
- Weight
- 1.33 kg
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEU-2432
- Part number
- 53016817101
- EAN / UPC
- 4015867241264
- Also known as
- LevelOne GEU-2432 24-Port Gigabit Ethernet Switch, 4-Mode DIP Button, 19" Rackmount Unmanaged Switch
Specifications
52 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.71 Mpps |
| Packet forwarding | Yes |
| Packet buffer memory | 4.1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Power, Link, Activity |
Performance
| Specification | Value |
|---|---|
| Noise level | 0 dB |
| Plug and Play | Yes |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.7 A |
| Power consumption (max) | 18 W |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 48 Gbit/s |
| Data transfer rate | 1 Gbit/s |
| Size (imperial) | 48.3 cm (19") |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 160 mm |
| Height | 44 mm |
| Weight | 1.33 kg |

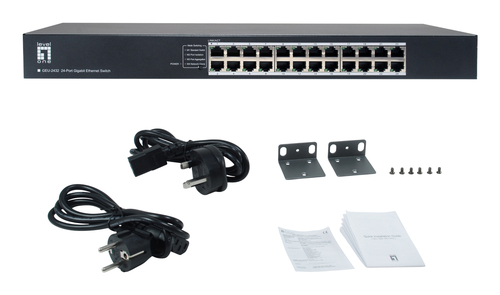

Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Doesn't contain | Lead, Mercury, Cadmium |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, Low Voltage Directive (LVD), Electromagnetic Compatibility (EMC) |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 8517620000 |
| Country of origin | China |
