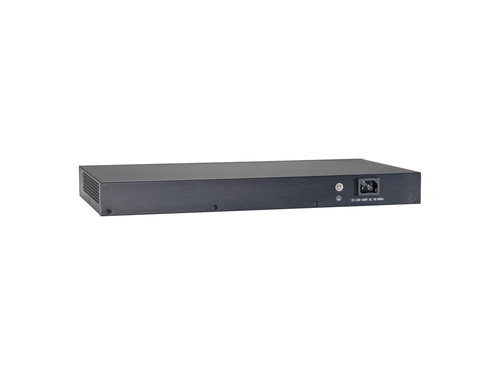

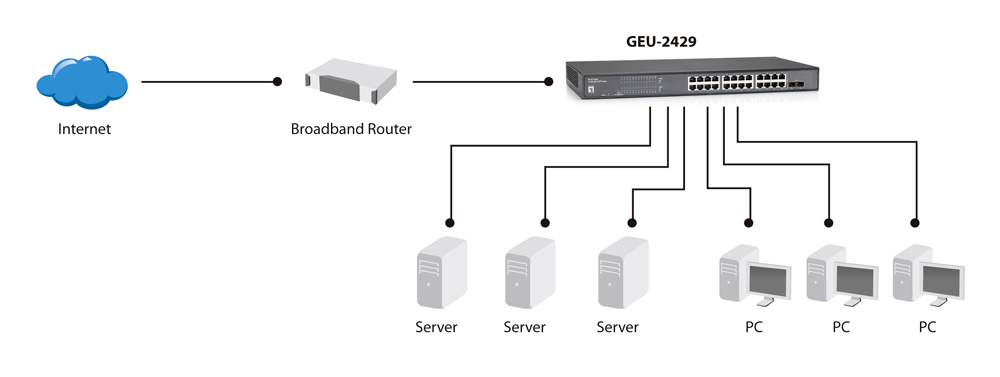

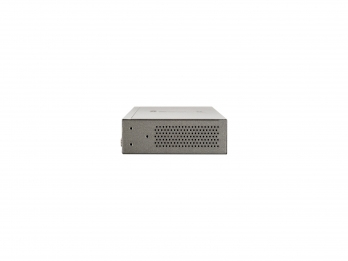

LevelOne 26-Port Gigabit Switch, 2 x SFP
Model GEU-2429EAN 132017828190
40 specifications
- Memory16 MB
- Weight2.6 kg
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8192 entries
Overview
- Memory
- 16 MB
- Weight
- 2.6 kg
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8192 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEU-2429
- Part number
- GEU-2429
- EAN / UPC
- 132017828190, 846359002742, 4015867161777
- Also known as
- LevelOne 26-Port Gigabit Switch, 2 x SFP
Specifications
40 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 48 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet buffer memory | 4.1 MB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Internal memory | 16 MB |
Power
| Specification | Value |
|---|---|
| Input current | 2 A |
| Input voltage | 12 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 2.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 308 mm |
| Package depth | 94 mm |
| Package height | 550 mm |
| Package weight | 3.3 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
