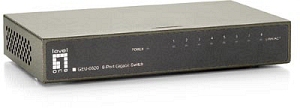

LevelOne GEU-0820 network switch Unmanaged Grey
Model GEU-0820EAN 846359001691
30 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight360 g
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 360 g
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEU-0820
- Part number
- GEU-0820
- EAN / UPC
- 846359001691, 4015867158678
- Also known as
- LevelOne GEU-0820 network switch Unmanaged Grey
Specifications
30 specifications in 10 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.128 MB |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Grey |
| LED indicators | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 154.5 x 84 x 26 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Power requirements | 5VDC, 1.2A |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 360 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI Class A |
