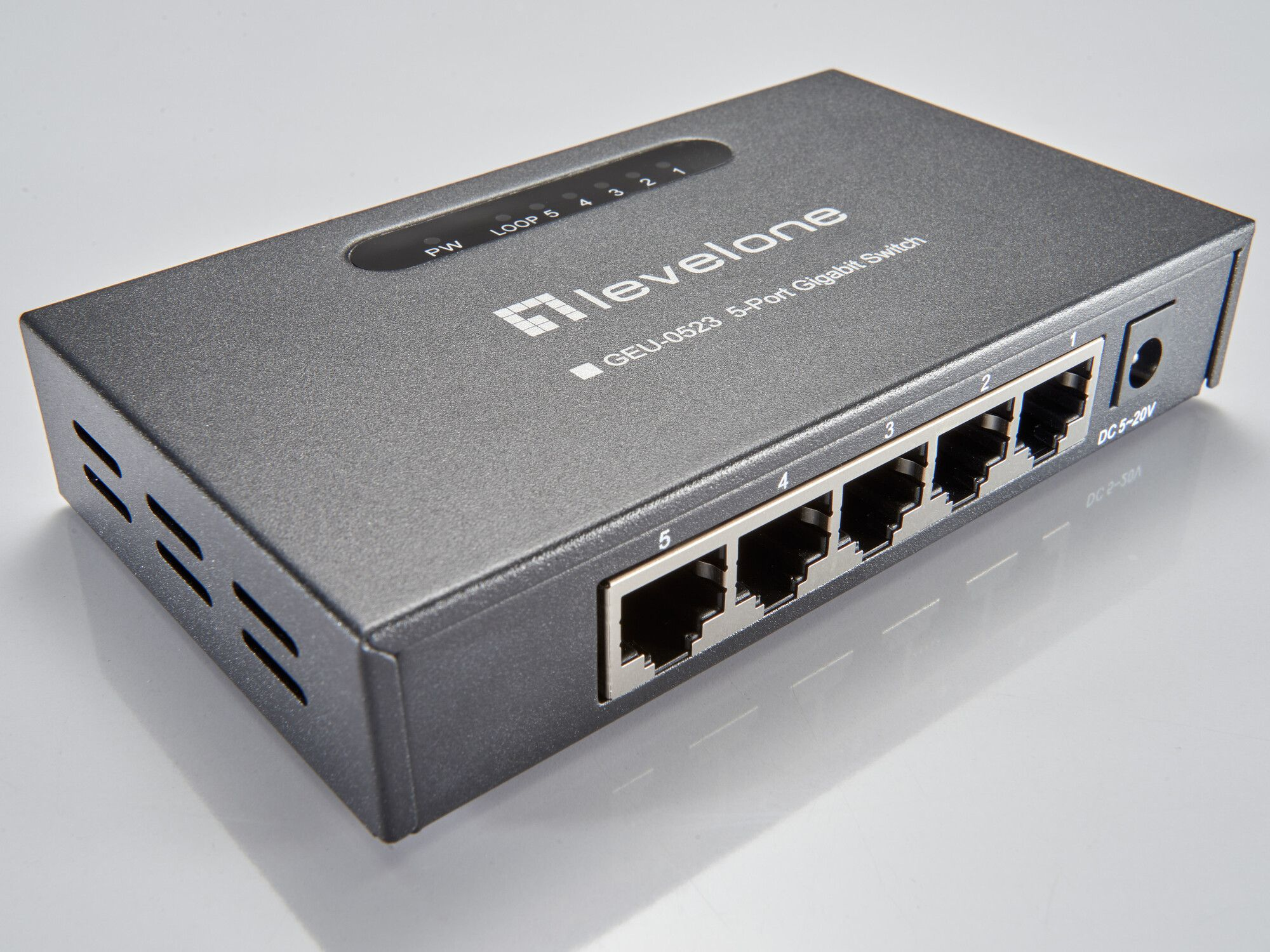

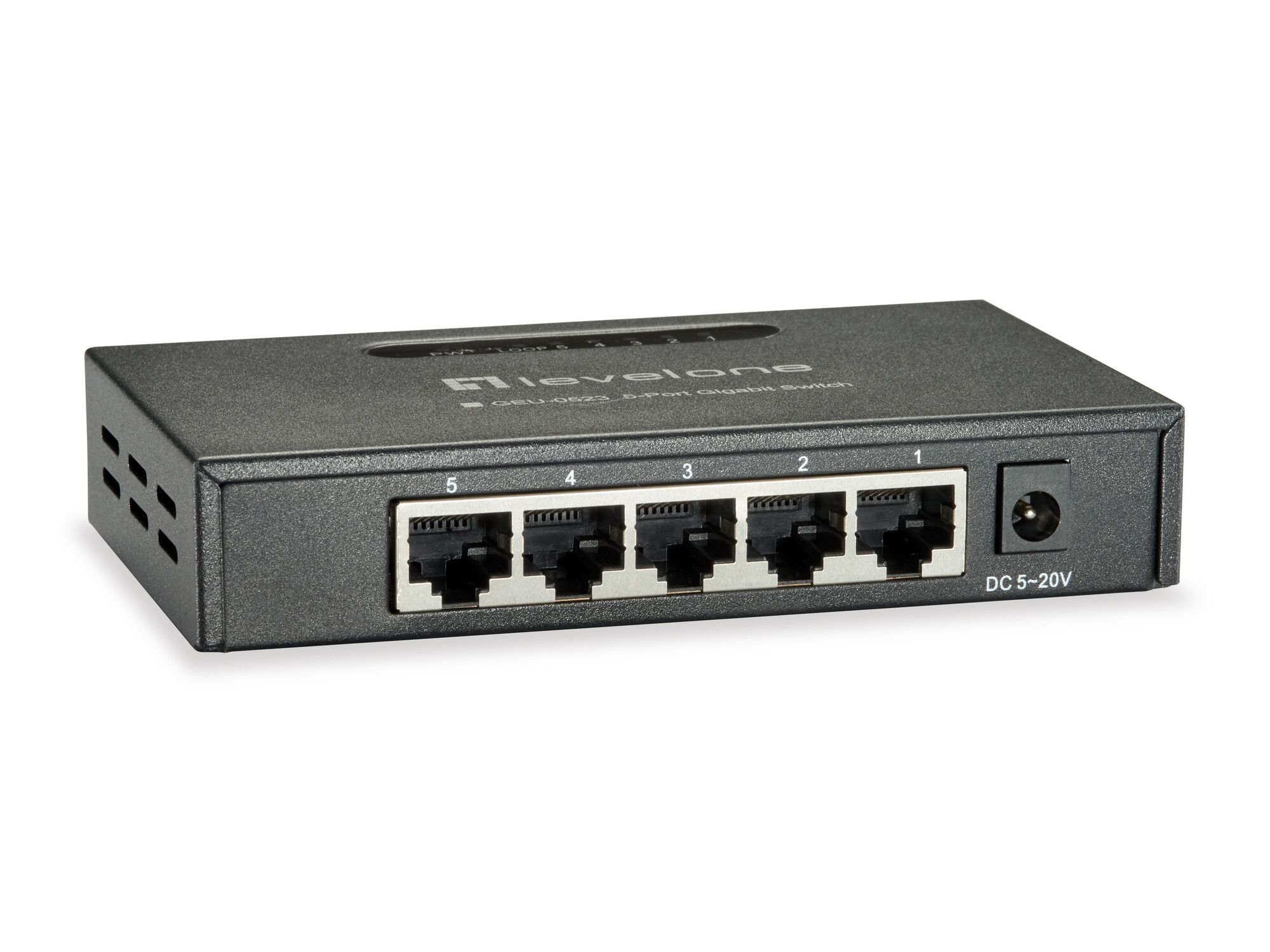

GEU-0523 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Model GEU-0523EAN 4015867222256
45 specifications
- ProcessorMT7530D
- Weight174 g
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- Networking standardsIEEE 802.3az
Overview
- Processor
- MT7530D
- Weight
- 174 g
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Networking standards
- IEEE 802.3az
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEU-0523
- Part number
- GEU-0523
- EAN / UPC
- 4015867222256
- Also known as
- LevelOne GEU-0523 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Specifications
45 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3az |
| 10G support | No |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Transmission method | Store- froward |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | MT7530D |
| Flash memory | 1024 MB |
Power
| Specification | Value |
|---|---|
| Power supply included | No |
| DC input voltage | 5 V |
| Input current | 0.5 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 72 mm |
| Height | 24 mm |
| Weight | 174 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package width | 138 mm |
| Package depth | 80 mm |
| Package height | 80 mm |
| Package weight | 290 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
