LevelOne 5-Port Gigabit Switch, 1 x SFP
Model GEU-0521EAN 4015867173480
54 specifications
- Weight380 g
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity4
- 10G supportNo
- Fiber ethernet cabling technology1000BASE‑LX, 1000BASE‑SX
Overview
- Weight
- 380 g
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 4
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE‑LX, 1000BASE‑SX
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEU-0521
- Part number
- GEU-0521
- EAN / UPC
- 4015867173480
- Also known as
- LevelOne 5-Port Gigabit Switch, 1 x SFP
Specifications
54 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Transmission distance (max) | 0.55 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.5 A |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96 mm |
| Depth | 112 mm |
| Height | 30 mm |
| Weight | 380 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Rubber feet | Yes |
| Package width | 140 mm |
| Package depth | 250 mm |
| Package height | 55 mm |
| Package weight | 540 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
Compare LevelOne 5-Port Gigabit Switch, 1 x SFP

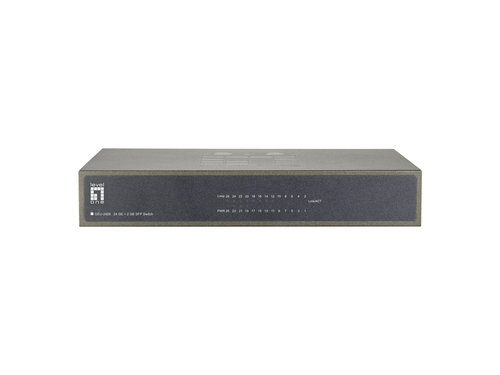

Compare any products- LevelOne 5-Port Gigabit Switch, 1 x SFP vsLevelOne GEU-2428 network switch Unmanaged BlackCompare specs
- LevelOne 5-Port Gigabit Switch, 1 x SFP vsLevelOne GEU-1628 network switch Unmanaged BlackCompare specs
- LevelOne 5-Port Gigabit Switch, 1 x SFP vsLevelOne 24-Port Web Smart Gigabit Ethernet PoE Switch, 802.3at PoE+, 24 PoE Outputs, 4 Ports SFP/RJ45 ComboCompare specs
- LevelOne 5-Port Gigabit Switch, 1 x SFP vsLevelOne GES-2450 network switch Managed 1U GreyCompare specs
- LevelOne 5-Port Gigabit Switch, 1 x SFP vsD-Link DGS-108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop BlackCompare specs

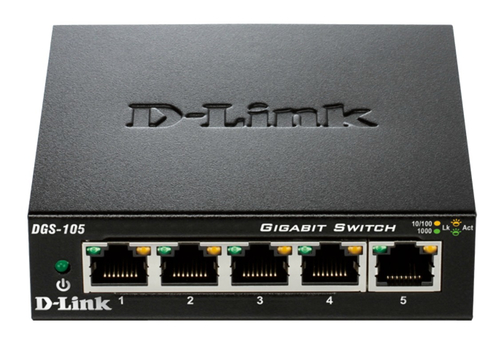

- LevelOne 5-Port Gigabit Switch, 1 x SFP vsD-Link DGS-105 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Desktop BlackCompare specs

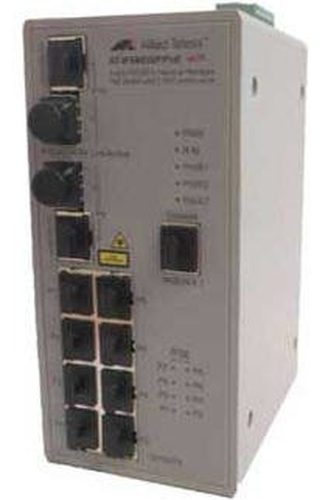

- LevelOne 5-Port Gigabit Switch, 1 x SFP vsAllied Telesis AT-IFS802SP Managed Fast Ethernet (10/100) GreyCompare specs
