LevelOne 28-Port Web Smart Gigabit Switch, 4 x Gigabit SFP/RJ45 Combo
Model GES-2451EAN 846359032343
82 specifications
- Memory128 MB
- Weight2.6 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Memory
- 128 MB
- Weight
- 2.6 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GES-2451
- Part number
- GES-2451
- EAN / UPC
- 846359032343, 4015867187432, 8463590323430
- Also known as
- LevelOne 28-Port Web Smart Gigabit Switch, 4 x Gigabit SFP/RJ45 Combo
Specifications
82 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Installed QSFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Fiber optic connector | SFP |

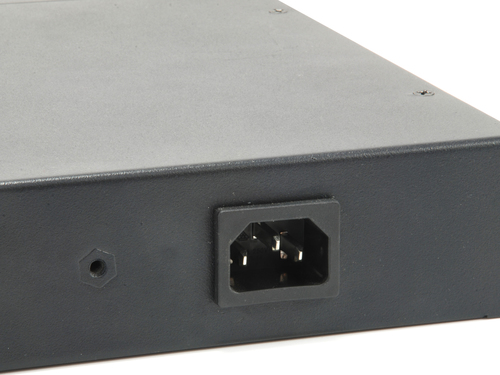

| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.7 Mpps |
| Store-and-forward | Yes |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| CPU defense | Yes |
| DoS attack prevention | Yes |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | RMON, SNMP v1, v2c, v3; DNS client, proxy; HTTPs |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | System, Activity, LAN, Link, Power |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Buffer size | 4100 KB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| Power consumption (typical) | 12 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 208 mm |
| Height | 44 mm |
| Weight | 2.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Resource CD | Yes |
| Rubber feet | Yes |
| Package width | 507 mm |
| Package depth | 310 mm |
| Package height | 94 mm |
| Package weight | 3.1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class A, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Master (outer) case width | 528 mm |
| Master (outer) case length | 490 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 335 mm |
| Master (outer) case gross weight | 16.3 kg |
| Products per master (outer) case | 5 pc(s) |
