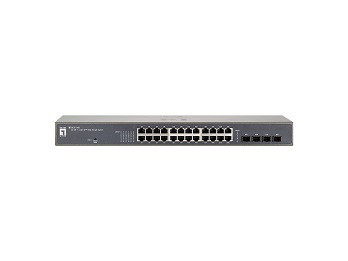

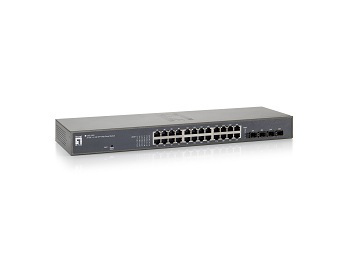

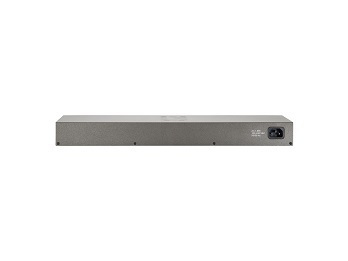

LevelOne GES-2450 network switch Managed 1U Grey
Model GES-2450EAN 846359014981
49 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Type1U
- Weight2 kg
- ColourGrey
- Switch typeManaged
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Type
- 1U
- Weight
- 2 kg
- Colour
- Grey
- Switch type
- Managed
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GES-2450
- Part number
- GES-2450
- EAN / UPC
- 846359014981, 4015867165041, 8463590149818
- Also known as
- LevelOne GES-2450 network switch Managed 1U Grey
Specifications
49 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| MIB support | RMON |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Fiber ports quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Number of queues | 8 |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.4375 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS |
| Static port security | Yes |
Protocols
| Specification | Value |
|---|---|
| Management protocols | SNMPv1/v2/v3, IGMPv1/v2/v3 |
| Supported network protocols | WRR, MSTP, RSTP, STP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | LAN, Link, Power, Status, Yes |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 77506 h |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 441 x 103 x 44 mm |
| Connectivity technology | Wired |
| Input frequency | 50/60 Hz |
| Networking features | Gigabit Ethernet |
| Power LED | Yes |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, VCCI |
