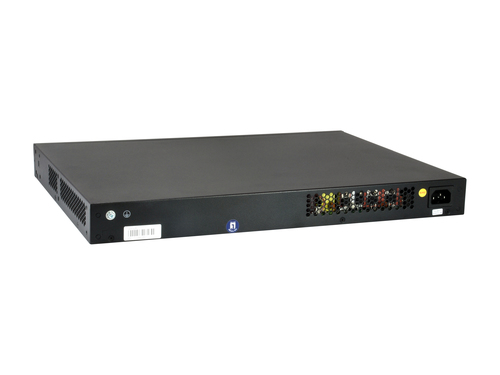

LevelOne KILBY 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x SFP, 48 PoE Outputs
370W
Model GEP-5271EAN 4015867207130
81 specifications
- Memory32 MB
- Weight4.4 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity48
- 10G supportNo
Overview
- Memory
- 32 MB
- Weight
- 4.4 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 48
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-5271
- Part number
- GEP-5271
- EAN / UPC
- 4015867207130
- Also known as
- LevelOne KILBY 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x SFP, 48 PoE Outputs, 370W
Specifications
81 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| ARP inspection | Yes |
| Traffic classification | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| Link aggregation | Yes |
| Network virtualization technologies | Q-in-Q tunneling |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN, Protocol-based VLAN, Policy-based VLAN, Port-based VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 100BASE-X, 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77.4 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet forwarding | Yes |
| Packet buffer memory | 256 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast features | Multicast ports load balancing |
Protocols
| Specification | Value |
|---|---|
| IPv4 & IPv6 features | IPv6 ping, IPv6 Telnet, Dual stack IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Internal memory | 32 MB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 480 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 330 mm |
| Height | 43.6 mm |
| Weight | 4.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Resource CD | Yes |
| Rubber feet | Yes |
| Package width | 590 mm |
| Package depth | 390 mm |
| Package height | 133 mm |
| Package weight | 6.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC Class A, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Master (outer) case width | 590 mm |
| Master (outer) case length | 390 mm |
| Master (outer) case height | 133 mm |
| Master (outer) case gross weight | 6.2 kg |
| Products per master (outer) case | 1 pc(s) |
