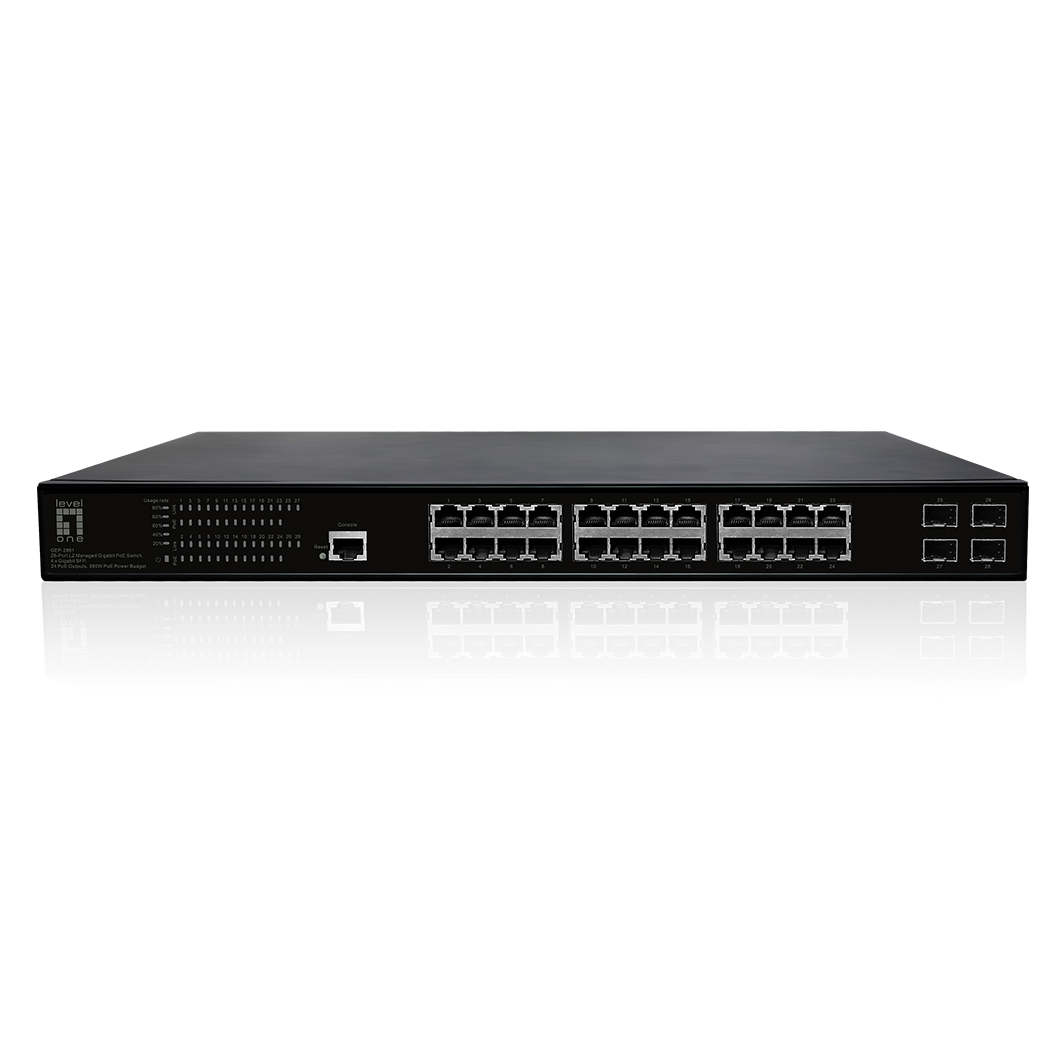

GEP-2861 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model GEP-2861EAN 4015867227848
60 specifications
- Type1U
- Weight4 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Type
- 1U
- Weight
- 4 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-2861
- Part number
- GEP-2861
- EAN / UPC
- 4015867227848
- Also known as
- LevelOne GEP-2861 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
60 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Power connector | AC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T, 100BASE-TX |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4 MB |
Security
| Specification | Value |
|---|---|
| Access Control List (ACL) | Yes |
| BPDU filtering/protection | Yes |
| Password protection | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, PoE, Speed, System |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
| Fanless | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 390 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 285 mm |
| Height | 44 mm |
| Weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 395 mm |
| Package depth | 90 mm |
| Package height | 530 mm |
| Package weight | 4.8 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
