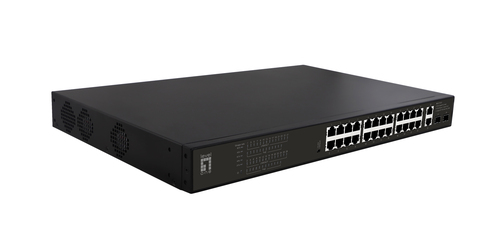

GEP-2821 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Model GEP-2821EAN 878742008482
51 specifications
- ProcessorRealtek RTL8382L
- Type1U
- Weight4 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity28
Overview
- Processor
- Realtek RTL8382L
- Type
- 1U
- Weight
- 4 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 28
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-2821
- Part number
- GEP-2821
- EAN / UPC
- 878742008482, 4015867223901
- Also known as
- LevelOne GEP-2821 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Specifications
51 specifications in 16 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1af, IEEE 802.3at |
| 10G support | No |
| VLAN support | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Transmission distance (max) | 0.25 km |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Packet buffer memory | 42 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor model | Realtek RTL8382L |
| Flash memory | 4 MB |
| MTBF (PoE) | 290000 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Surge protection | Yes |
| Surge protection voltage | 6 kV |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 30 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 390 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 85 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Heat dissipation | 119.544 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 285 mm |
| Depth | 442 mm |
| Height | 44 mm |
| Weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 395 mm |
| Package depth | 90 mm |
| Package height | 530 mm |
| Package weight | 4.8 kg |
Technical details
| Specification | Value |
|---|---|
| Pallet net height | 140.4 cm |
| Pallet net length | 80 cm |
| Pallet net width | 120 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
