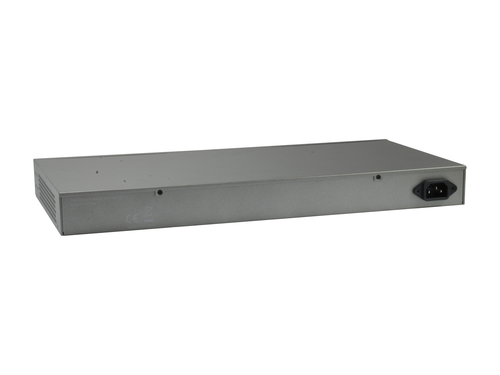

TURING 26-Port L3 Lite Managed Gigabit PoE Switch, 24 PoE Outputs
370W, 2 x SFP/RJ45 Combo
Model GEP-2682EAN 4015867198971
80 specifications
- Memory128 MB
- Weight3.5 kg
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- Fiber ethernet cabling technology1000BASE-X
Overview
- Memory
- 128 MB
- Weight
- 3.5 kg
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE-X
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-2682
- Part number
- GEP-2682
- EAN / UPC
- 4015867198971
- Also known as
- LevelOne TURING 26-Port L3 Lite Managed Gigabit PoE Switch, 24 PoE Outputs, 370W, 2 x SFP/RJ45 Combo
Specifications
80 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Broadcast storm control | Yes |
| Cable length detection | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, MAC address-based VLAN, Port-based VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Forwarding rate | 38.7 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9600 |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server, DHCP snooping, DHCP relay, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
Protocols
| Specification | Value |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Supported network protocols | IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| LED indicators | Activity, Link, PoE, Speed, System |
| Safety | CB IEC-60950, UL 60950-1, 2nd Edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Buffer size | 512 KB |
| Firmware upgradeable | Yes |
| Telnet | Yes |
| sFlow | Yes |
| Mean time between failures (MTBF) | 211272 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 20.71 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 370 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 211 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Blister |
| Resource CD | Yes |
| Package width | 300 mm |
| Package depth | 520 mm |
| Package height | 90 mm |
| Package weight | 3.9 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC Part 15 Class A |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 482 mm |
| Master (outer) case length | 540 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 324 mm |
| Master (outer) case gross weight | 20.7 kg |
| Products per master (outer) case | 5 pc(s) |
