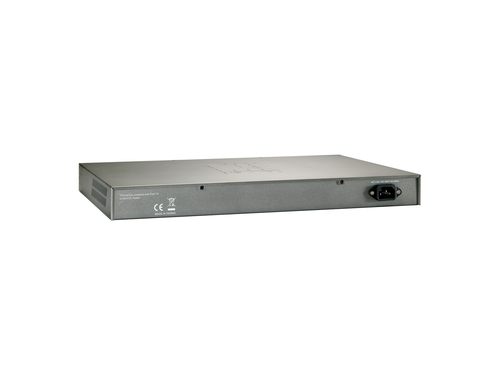

LevelOne 26-Port L2 Managed Gigabit Ethernet PoE Switch, 802.3at PoE+, 24 PoE Outputs, 4 Ports SFP/RJ45 Combo, 2 Ports SFP
185W
Model GEP-2671EAN 4015867184585
77 specifications
- Weight2.27 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- Fiber ethernet cabling technology1000BASE-X
Overview
- Weight
- 2.27 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE-X
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-2671
- Part number
- GEP-2671
- EAN / UPC
- 4015867184585
- Also known as
- LevelOne 26-Port L2 Managed Gigabit Ethernet PoE Switch, 802.3at PoE+, 24 PoE Outputs, 4 Ports SFP/RJ45 Combo, 2 Ports SFP, 185W
Specifications
77 specifications in 17 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Private VLAN, Tagged VLAN, Port-based VLAN |
| Number of VLANs | 256 |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 52 Gbit/s |
| Store-and-forward | Yes |
| Number of trunks | 25 |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 256 |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
| Security algorithms | SSL/TLS |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Grey |
| Reset button | Yes |
| LED indicators | Activity, Link, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 250 W |
| Power protection features | Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 185 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 442 mm |
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 2.27 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Resource CD | Yes |
| Rubber feet | Yes |
| Package width | 540 mm |
| Package depth | 473 mm |
| Package height | 100 mm |
| Package weight | 3.4 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Part 15 Class A, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
