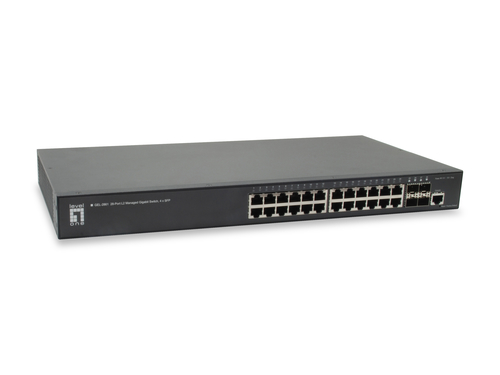

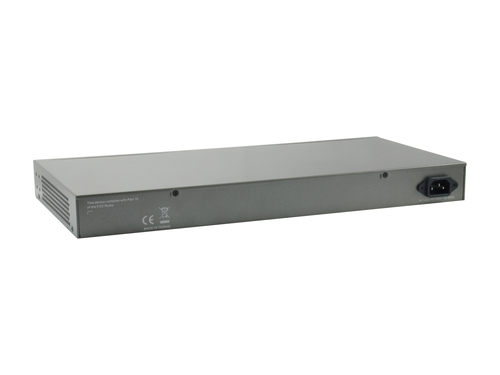

LevelOne TURING 26-Port Web Smart Gigabit PoE Switch, 24 PoE Outputs, 2 x SFP/RJ45 Combo

185W, 802.3at/af PoE

Model GEP-2651EAN 4015867198957

80 specifications

Memory128 MB
Weight3.1 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
Copper ethernet cabling technology100BASE-TX, 1000BASE-T

See all specifications

Overview

Memory: 128 MB
Weight: 3.1 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-T

Brand: LevelOne
Category: Network Switch
Model: GEP-2651
Part number: GEP-2651
EAN / UPC: 4015867198957
Also known as: LevelOne TURING 26-Port Web Smart Gigabit PoE Switch, 24 PoE Outputs, 2 x SFP/RJ45 Combo, 185W, 802.3at/af PoE

Specifications

80 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	24
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Combo SFP ports quantity	2

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Cable length detection	Yes
Flow control support	Yes
Link aggregation	Yes
MAC address auto-aging supported	Yes
MAC address auto-learning supported	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, MAC address-based VLAN, Port-based VLAN
Number of VLANs	256

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	52 Gbit/s
Forwarding rate	38.7 Mpps
Store-and-forward	Yes
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9600

Security

Specification	Value
DHCP features	DHCP server, DHCP snooping, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
Loop protection	Yes
Security algorithms	802.1x RADIUS
Static port security	Yes

Protocols

Specification	Value
Supported network protocols	IPv4/IPv6

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Reset button	Yes
LED indicators	Activity, Link, PoE, Speed
Safety	UL 60950-1, 2nd Edition, 2014-10-14, CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10

Performance

Specification	Value
Internal memory	128 MB
Flash memory	32 MB
Buffer size	512 KB
Firmware upgradeable	Yes
Mean time between failures (MTBF)	211272 h

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	18.29 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	185 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	442 mm
Depth	211 mm
Height	44 mm
Weight	3.1 kg

Packaging content

Specification	Value
Cables included	AC
Quick start guide	Yes
Manual	Yes

Packaging data

Specification	Value
Package width	300 mm
Package depth	520 mm
Package height	90 mm
Package weight	3.5 kg

Certificates

Specification	Value
Certification	CE, FCC Part 15 Class A, RoHS

Logistics data

Specification	Value
Country of origin	Taiwan
Master (outer) case width	482 mm
Master (outer) case length	540 mm
Harmonized System (HS) code	85176990
Master (outer) case height	324 mm
Master (outer) case gross weight	21 kg
Products per master (outer) case	5 pc(s)
