LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE
150W
Model GEP-2421W150EAN 4015867202104
58 specifications
- Weight2.9 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8000 entries
Overview
- Weight
- 2.9 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-2421W150
- Part number
- GEP-2421W150
- EAN / UPC
- 4015867202104
- Also known as
- LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE, 150W
Specifications
58 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 4.1 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | LAN, PoE, Power |
| Safety | FCC Class A, CE |
| Regulatory Approvals | EMI: EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013. EMS: EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 55500 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 56 V |
| Output power | 30 W |
| Power consumption (typical) | 150 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 44 mm |
| Height | 440 mm |
| Weight | 2.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Rubber feet | Yes |
| Package width | 260 mm |
| Package depth | 95 mm |
| Package height | 540 mm |
| Package weight | 3.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 280 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 555 mm |
| Master (outer) case gross weight | 18 kg |
| Products per master (outer) case | 5 pc(s) |
Compare LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE

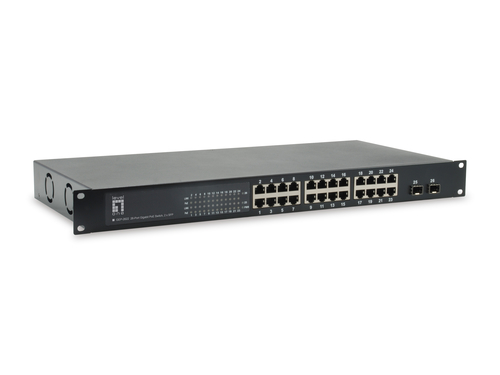

Compare any products- LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE vsLevelOne 26-Port Gigabit PoE Switch, 2 x SFP, 24 PoE Outputs, 802.3at/af PoECompare specs
- LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE vsLevelOne 26-Port Gigabit PoE Switch, 2 x SFP, 24 PoE Outputs, 802.3at/af PoECompare specs
- LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE vsLevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoECompare specs
- LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE vsLevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoECompare specs

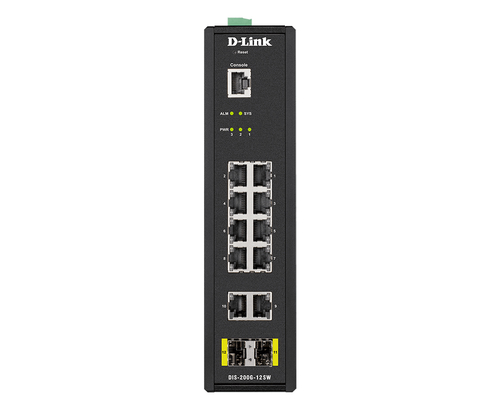

- LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE vsD-Link DIS-200G-12SW network switch Managed L2 Gigabit Ethernet (10/100/1000) BlackCompare specs
- LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE vsD-Link DIS-200G-12PSW network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) BlackCompare specs

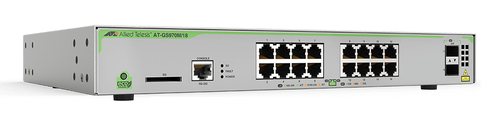

- LevelOne 24-Port Gigabit PoE Switch, 802.3at/af PoE vsAllied Telesis AT-GS970M/28PS-30 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) GreyCompare specs
