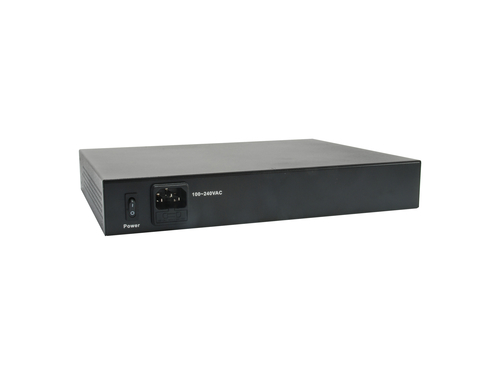

LevelOne 10-Port L2 Managed Gigabit PoE Switch, 802.3at/af PoE, 2 x SFP

120W

Model GEP-1070EAN 4015867197578

70 specifications

Memory16 MB
Type19U
Weight2.2 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8

See all specifications

Overview

Memory: 16 MB
Type: 19U
Weight: 2.2 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8

Brand: LevelOne
Category: Network Switch
Model: GEP-1070
Part number: GEP-1070
EAN / UPC: 4015867197578
Also known as: LevelOne 10-Port L2 Managed Gigabit PoE Switch, 802.3at/af PoE, 2 x SFP, 120W

Specifications

70 specifications in 18 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Fiber optic connector	SFP

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Full duplex	Yes
Broadcast storm control	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, Protocol-based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	100BASE-X, 1000BASE-X

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Throughput	14.88 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
IP-MAC-Port binding	Yes

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	SNMP/ HTTP / HTTPS / TELNET / SSH

Design

Specification	Value
Rack mounting	Yes
Stackable	No
Form factor	19U
Product colour	Black
Reset button	Yes
LED indicators	Activity, Link, Power
On/off switch	Yes

Performance

Specification	Value
Internal memory	16 MB
Mean time between failures (MTBF)	307044 h

Power

Specification	Value
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	120 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	215 mm
Depth	44 mm
Height	280 mm
Weight	2.2 kg

Packaging content

Specification	Value
Cables included	AC
Rack mount kit	Yes

Packaging data

Specification	Value
Package type	Box
Resource CD	Yes
Package width	235 mm
Package depth	83 mm
Package height	377 mm
Package weight	3.1 kg

Certificates

Specification	Value
Certification	FCC Part 15 Class B, CE

Logistics data

Specification	Value
Country of origin	Taiwan
Master (outer) case width	430 mm
Master (outer) case length	320 mm
Harmonized System (HS) code	85176990
Master (outer) case height	480 mm
Master (outer) case gross weight	16 kg
Products per master (outer) case	5 pc(s)
