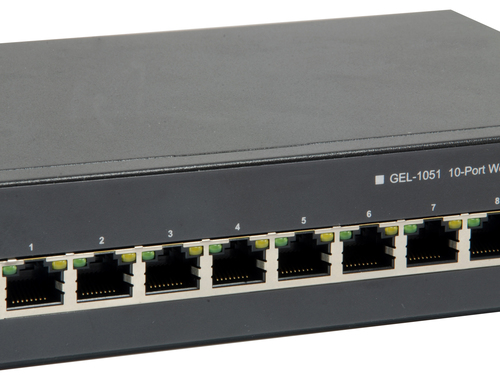

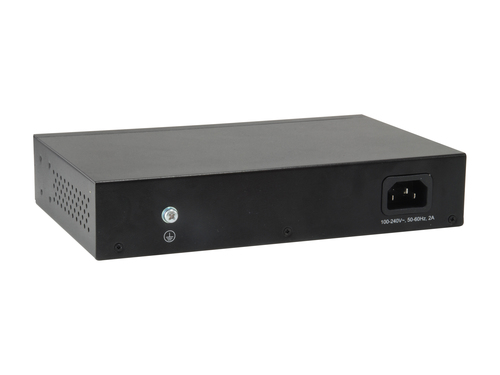

LevelOne 10-Port Web Smart Gigabit PoE Switch, 8 PoE Outputs, 2 x Gigabit SFP

70W

Model GEP-1051EAN 4015867205013

88 specifications

Memory16 MB
Noise0 dB
Weight2 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity8

See all specifications

Overview

Memory: 16 MB
Noise: 0 dB
Weight: 2 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 8

Brand: LevelOne
Category: Network Switch
Model: GEP-1051
Part number: GEP-1051
EAN / UPC: 4015867205013
Also known as: LevelOne 10-Port Web Smart Gigabit PoE Switch, 8 PoE Outputs, 2 x Gigabit SFP, 70W

Specifications

88 specifications in 18 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
System event log	Yes
MIB support	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0

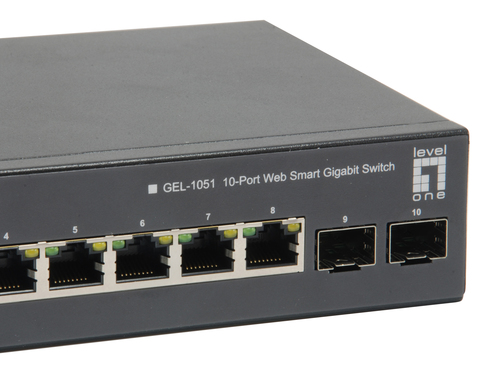

SFP module slots quantity	2

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Fast leave	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Port-based VLAN

Optical fiber

Specification	Value
Fiber ethernet cabling technology	1000BASE-X

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.9 Mpps
Store-and-forward	Yes
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB

Security

Specification	Value
DHCP features	DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) ingress	256
IGMP snooping	Yes
Authentication type	HWTACACS+, RADIUS
BPDU filtering/protection	Yes
CPU defense	Yes
DoS attack prevention	Yes
Loop protection	Yes
MAC address filtering	Yes
Neighbor discovery snooping	Yes
Password protection	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Root protection	Yes
Security algorithms	SSH, SSH-2, SSL/TLS
Static port security	Yes

Multicast features

Specification	Value
Multicast Listener Discovery (MLD) snooping	Yes

Protocols

Specification	Value
Management protocols	SNMP v1/v2c/v3, Telnet
IPv4 & IPv6 features	IPv6 ping, IPv6 tracert, IPv6 Telnet, Dual stack IPv4/IPv6

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Reset button	Yes

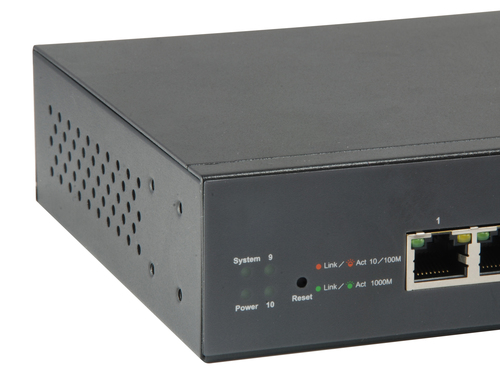

LED indicators	Activity, Link, Power, System
Safety	UL

Performance

Specification	Value
Internal memory	16 MB
Firmware upgradeable	Yes
Noise level	0 dB
Plug and Play	Yes
Mean time between failures (MTBF)	118824 h

Power

Specification	Value

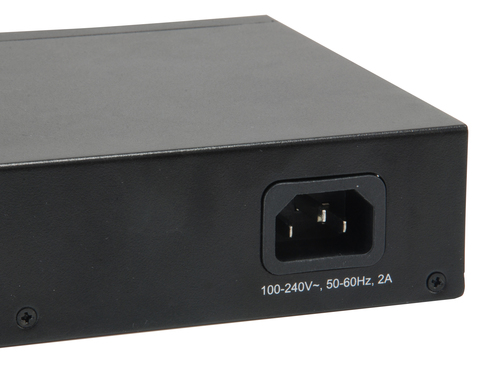

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	80 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	70 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	267.95 BTU/h

Weight & dimensions

Specification	Value
Width	294 mm
Depth	180 mm
Height	44 mm
Weight	2 kg

Packaging content

Specification	Value
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Package type	Box
Resource CD	Yes
Package width	375 mm
Package depth	270 mm
Package height	85 mm
Package weight	2.18 kg

Certificates

Specification	Value
Certification	CE class A, FCC, VCCI, BSMI

Logistics data

Specification	Value
Country of origin	China
Harmonized System (HS) code	85176990
