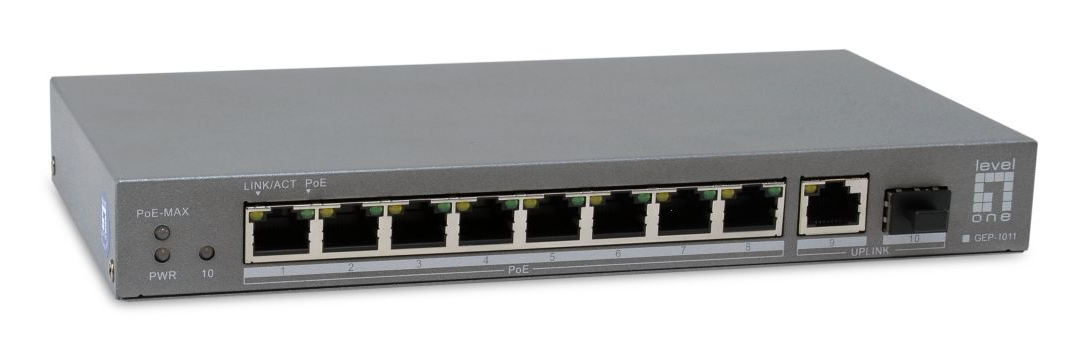

10-Port Gigabit PoE Switch, 802.3af/at PoE, 8 PoE Outputs
120W Power Budget, 1 x Gigabit SFP, 1 x Gigabit RJ45 Uplink
Model GEP-1011EAN 4015867241110
55 specifications
- TypeDesktop/Wall-Mounting
- Weight600 g
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity9
- 10G supportNo
Overview
- Type
- Desktop/Wall-Mounting
- Weight
- 600 g
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 9
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-1011
- Part number
- GEP-1011
- EAN / UPC
- 4015867241110
- Also known as
- LevelOne 10-Port Gigabit PoE Switch, 802.3af/at PoE, 8 PoE Outputs, 120W Power Budget, 1 x Gigabit SFP, 1 x Gigabit RJ45 Uplink
Specifications
55 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 1 |
| Uplink ports quantity | 1 |
| Fiber uplink ports quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-SX, 1000BASE-LX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Packet buffer memory | 0.1875 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Grey |
| LED indicators | Link, PoE, ACT, Power |
| Market segment | Business |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Plug and Play | Yes |
| Fanless | Yes |
Power
| Specification | Value |
|---|---|
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 54 V |
| Input current | 2.22 A |
| Power consumption (typical) | 10 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Other features
| Specification | Value |
|---|---|
| Packaging content | Declaration of Conformity |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -45 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 217.6 mm |
| Depth | 27.8 mm |
| Height | 108.5 mm |
| Weight | 600 g |

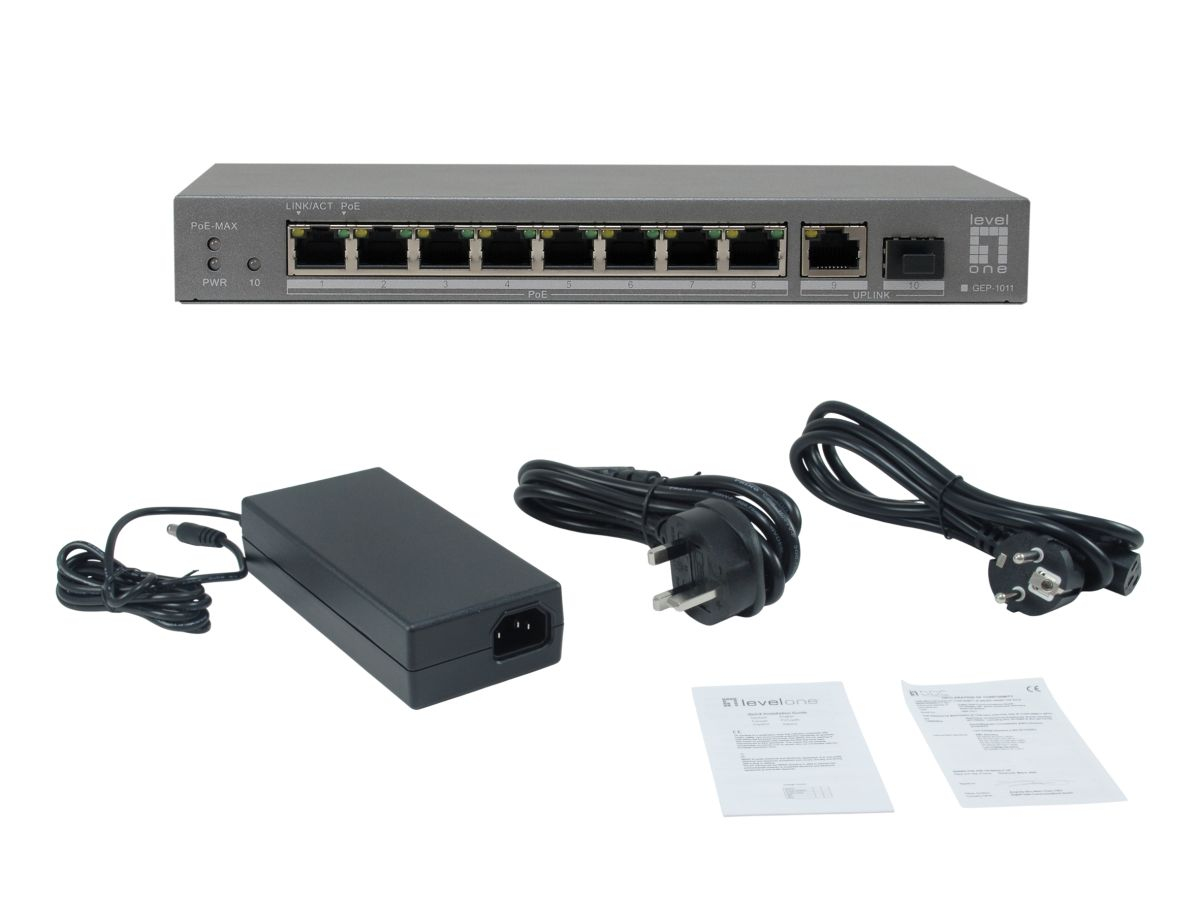

Packaging content
| Specification | Value |
|---|---|
| Cables included | Power |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), UL |
Logistics data
| Specification | Value |
|---|---|
| Customs product code (TARIC) | 846359 |
| Country of origin | China |
| Harmonized System (HS) code | 846359 |
