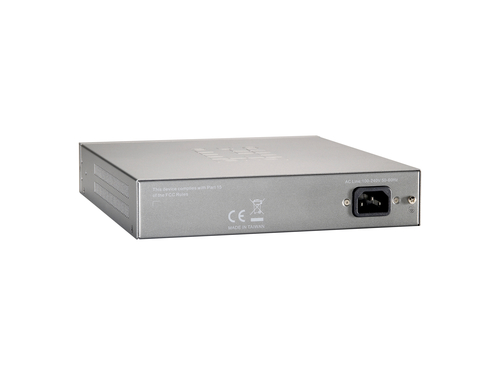

LevelOne 9-Port Web Smart Gigabit Ethernet PoE Switch, 802.3at PoE+, 1 Port SFP
130W, 8 PoE Outputs
Model GEP-0950EAN 4015867185087
48 specifications
- Type19U
- ColourSilver
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8192 entries
Overview
- Type
- 19U
- Colour
- Silver
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8192 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-0950
- Part number
- GEP-0950
- EAN / UPC
- 4015867185087
- Also known as
- LevelOne 9-Port Web Smart Gigabit Ethernet PoE Switch, 802.3at PoE+, 1 Port SFP, 130W, 8 PoE Outputs
Specifications
48 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Full duplex | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 18 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP client |
| IGMP snooping | Yes |
| Security algorithms | SNMP |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Form factor | 19U |
| Product colour | Silver |
| LED indicators | Activity, Link, PoE |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 165 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 130 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 242.4 mm |
| Height | 44 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Package width | 358 mm |
| Package depth | 259 mm |
| Package height | 87 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
