LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE
120W
Model GEP-0823EAN 846359041697
46 specifications
- Memory1 MB
- Weight450 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table8000 entries
Overview
- Memory
- 1 MB
- Weight
- 450 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 8000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-0823
- Part number
- GEP-0823
- EAN / UPC
- 846359041697, 4015867207444
- Also known as
- LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 120W
Specifications
46 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9126 |
Design
| Specification | Value |
|---|---|
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, LAN, Power |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1 MB |
| Buffer size | 8 KB |
| Mean time between failures (MTBF) | 30000 h |
Power
| Specification | Value |
|---|---|
| Input current | 2.5 A |
| Input voltage | 52 V |
| Power consumption (typical) | 10 W |
| Power protection features | Over current, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 30 mm |
| Height | 176 mm |
| Weight | 450 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package width | 230 mm |
| Package depth | 60 mm |
| Package height | 290 mm |
| Package weight | 950 g |
Certificates
| Specification | Value |
|---|---|
| Certification | CE,FCC |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
What people say
Reviews & ratings
LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE
No reviews yet
Be the first to tell others how LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE

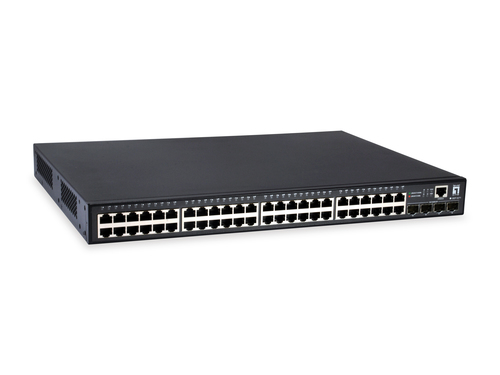

All network switch comparisons- LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE vsLevelOne KILBY 52-Port L3 Lite Managed Gigabit PoE Switch, 4 x SFP, 48 PoE OutputsCompare specs
- LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE vsLevelOne 5-Port Fast Ethernet PoE Switch, 250m, 802.3at/af PoECompare specs
- LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE vsLevelOne 5-Port Gigabit PoE Switch, 802.3at/af PoE, 4 PoE OutputsCompare specs
- LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE vsLevelOne 10-Port Web Smart Gigabit PoE Switch, 8 PoE Outputs, 2 x Gigabit SFPCompare specs
- LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE vsAllied Telesis AT-x950-28XSQ-B01 Managed L3 GreyCompare specs
- LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE vsAllied Telesis AT-FS710/24 network switch Unmanaged Fast Ethernet (10/100) GreyCompare specs

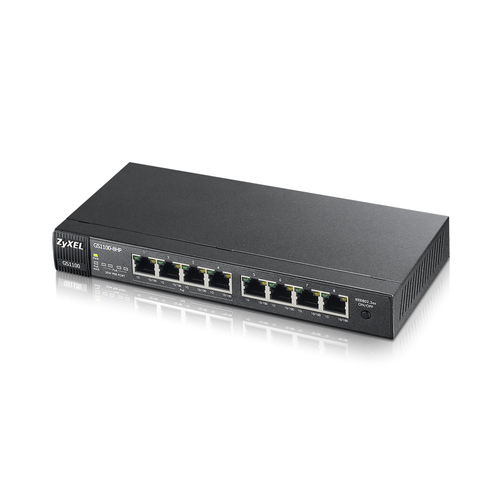

- LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE vsZyxel 8Port GbE PoE+ 802.3at Unmanaged SwitchCompare specs
