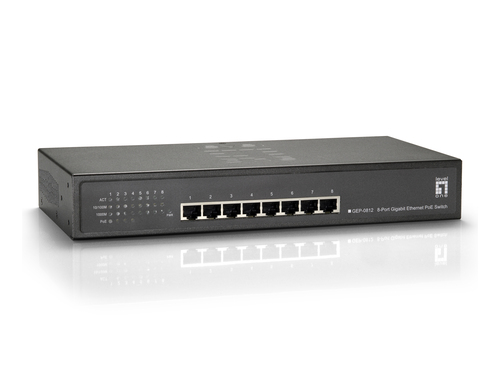

LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE

LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE

90W

Model GEP-0820W90EAN 4015867199817

61 specifications

Weight1.2 kg
ColourGrey
Basic switching RJ-45 Ethernet ports quantity8
10G supportNo
MAC address table8000 entries
DHCP featuresDHCP snooping, DHCP relay

See all specifications

Overview

Weight: 1.2 kg
Colour: Grey
Basic switching RJ-45 Ethernet ports quantity: 8
10G support: No
MAC address table: 8000 entries
DHCP features: DHCP snooping, DHCP relay

Brand: LevelOne
Category: Network Switch
Model: GEP-0820W90
Part number: GEP-0820W90
EAN / UPC: 4015867199817
Also known as: LevelOne 8-Port Gigabit PoE Switch, 802.3at/af PoE, 90W

Specifications

61 specifications in 14 groups

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0

Network

Specification	Value
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7
Full duplex	Yes
Flow control support	Yes

Data transmission

Specification	Value
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148000 pps

Security

Specification	Value
DHCP features	DHCP snooping, DHCP relay
SSH/SSL support	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Grey
LED indicators	Activity, PoE, Power

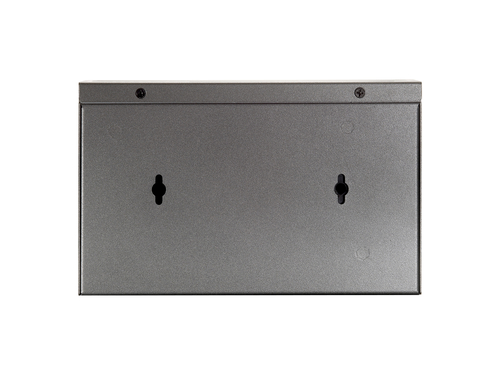

Wall mountable	Yes

Performance

Specification	Value
Buffer size	128 KB
sFlow	Yes

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.35 A
Power consumption (typical)	90 W
Power protection features	Over current, Short circuit

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	61.6 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	185 mm
Depth	44 mm
Height	280 mm
Weight	1.2 kg

Packaging content

Specification	Value
Cables included	AC
Quick start guide	Yes

Packaging data

Specification	Value
AC adapter included	Yes
Package type	Box
Package width	85 mm
Package depth	375 mm
Package height	230 mm
Package weight	2.55 kg

Certificates

Specification	Value
Certification	CE, FCC

Logistics data

Specification	Value
Country of origin	Taiwan
Master (outer) case width	250 mm
Master (outer) case length	520 mm
Harmonized System (HS) code	85176990
Master (outer) case height	395 mm
Master (outer) case gross weight	13.2 kg
Products per master (outer) case	6 pc(s)
