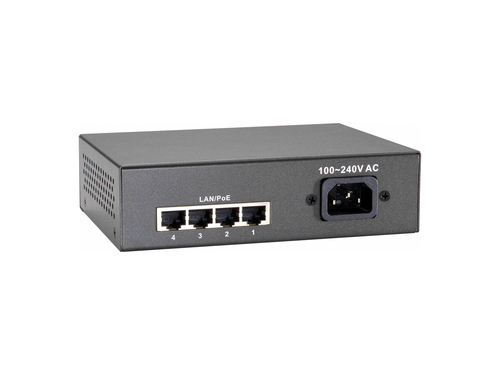

LevelOne 5-Port Gigabit PoE Switch
65W, 802.3at/af PoE, 4 PoE Outputs
Model GEP-0522EAN 4015867195895
50 specifications
- Weight800 g
- ColourGrey
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
- Buffer size128 KB
Overview
- Weight
- 800 g
- Colour
- Grey
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Buffer size
- 128 KB
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-0522
- Part number
- GEP-0522
- EAN / UPC
- 4015867195895
- Also known as
- LevelOne 5-Port Gigabit PoE Switch, 65W, 802.3at/af PoE, 4 PoE Outputs
Specifications
50 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1480000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| LED indicators | Activity, PoE, Power |
Performance
| Specification | Value |
|---|---|
| Buffer size | 128 KB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 2 A |
| Power consumption (max) | 65 W |
| Power protection features | Over current, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122 mm |
| Depth | 44 mm |
| Height | 160 mm |
| Weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Package width | 145 mm |
| Package depth | 80 mm |
| Package height | 235 mm |
| Package weight | 1.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 310 mm |
| Master (outer) case length | 252 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 422 mm |
| Master (outer) case gross weight | 12.5 kg |
| Products per master (outer) case | 20 pc(s) |
