5-Port Gigabit PoE Switch
61.6W, 802.3af PoE, 4 PoE Outputs, power adapter included
Model GEP-0520EAN 8463590014550
46 specifications
- Weight800 g
- ColourBlack
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2048 entries
- AC input voltage100 - 240 V
Overview
- Weight
- 800 g
- Colour
- Black
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2048 entries
- AC input voltage
- 100 - 240 V
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEP-0520
- Part number
- GEP-0520
- EAN / UPC
- 8463590014550, 132017793481, 666673317731, 846359001455 +3 more
- Also known as
- LevelOne 5-Port Gigabit PoE Switch, 61.6W, 802.3af PoE, 4 PoE Outputs, power adapter included
Specifications
46 specifications in 12 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5, Cat5e, Cat6, Cat7 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2048 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| LED indicators | Uplink, LAN, PoE, Power |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 65 W |
| Power protection features | Over current, Short circuit |

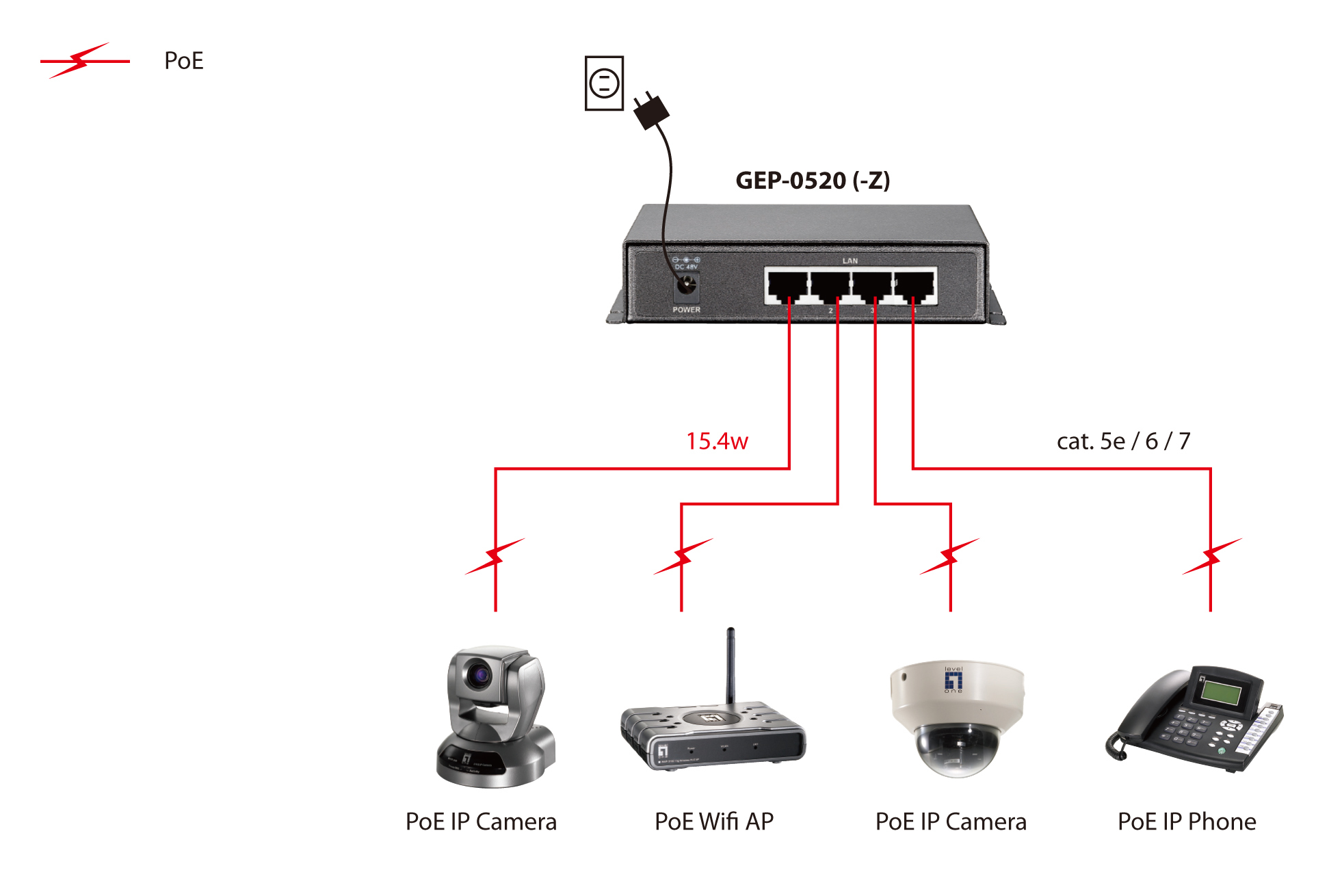

Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Total Power over Ethernet (PoE) budget | 61.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90 mm |
| Depth | 120 mm |
| Height | 28 mm |
| Weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package width | 150 mm |
| Package depth | 80 mm |
| Package height | 235 mm |
| Package weight | 1.04 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
