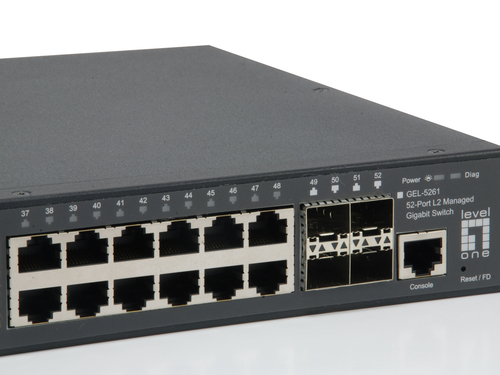

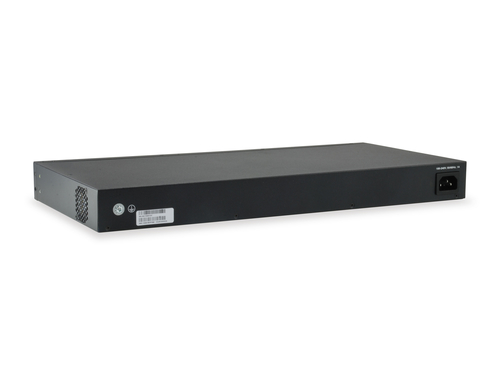

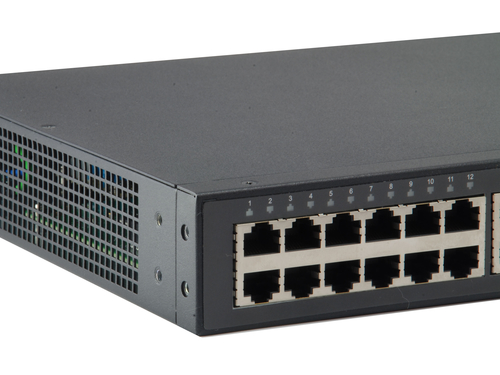

LevelOne KILBY 52-Port L2 Managed Gigabit Switch, 4 x SFP

Model GEL-5261EAN 4015867201855

80 specifications

Memory32 MB
Noise54.2 dB
Weight2.5 kg
ColourBlack
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity48

See all specifications

Overview

Memory: 32 MB
Noise: 54.2 dB
Weight: 2.5 kg
Colour: Black
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 48

Brand: LevelOne
Category: Network Switch
Model: GEL-5261
Part number: GEL-5261
EAN / UPC: 4015867201855
Also known as: LevelOne KILBY 52-Port L2 Managed Gigabit Switch, 4 x SFP

Specifications

80 specifications in 17 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic classification	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	RJ-45

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, MAC address-based VLAN, Port-based VLAN

Data transmission

Specification	Value
MAC address table	16000 entries
Switching capacity	104 Gbit/s
Forwarding rate	77.4 Mpps
Store-and-forward	Yes
Number of queues	8
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	12 MB

Security

Specification	Value
DHCP features	DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Authentication	MAC-based authentication
DoS attack prevention	Yes
MAC address filtering	Yes
SSH/SSL support	Yes

Multicast features

Specification	Value
Multicast support	Yes

Protocols

Specification	Value
Management protocols	NTP/SNTP/HTTP/TFTP/FTP/Telent/SSH
Supported network protocols	IPv6, IPv4
IPv4 & IPv6 features	IPv6 ping, IPv6 tracert, IPv6 Telnet

Design

Specification	Value
Rack mounting	Yes
Product colour	Black
Reset button	Yes
LED indicators	Activity, Link, Power

Performance

Specification	Value
Internal memory	32 MB
Firmware upgradeable	Yes
Noise level	54.2 dB
Plug and Play	Yes
Telnet	Yes
Mean time between failures (MTBF)	534057 h

Power

Specification	Value

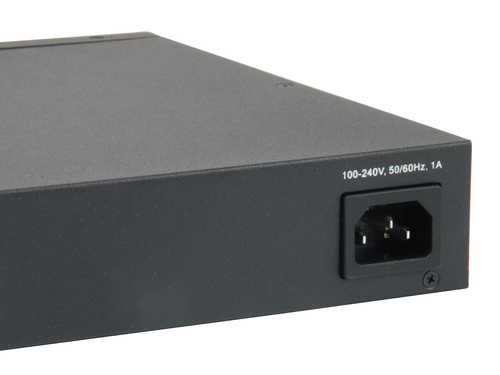

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W

Other features

Specification	Value
Clustering support	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	136.48 BTU/h

Weight & dimensions

Specification	Value
Width	440 mm
Depth	220 mm
Height	44 mm
Weight	2.5 kg

Packaging content

Specification	Value
Cables included	AC, LAN (RJ-45)
Quick start guide	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Package type	Box
Resource CD	Yes
Package width	580 mm
Package depth	80 mm
Package height	405 mm
Package weight	3.3 kg

Certificates

Specification	Value
Certification	CE class A, FCC, UL, VCCI, BSMI

Logistics data

Specification	Value
Country of origin	China
Master (outer) case width	600 mm
Master (outer) case length	340 mm
Harmonized System (HS) code	85176990
Master (outer) case height	435 mm
Master (outer) case gross weight	14.3 kg
Products per master (outer) case	4 pc(s)
