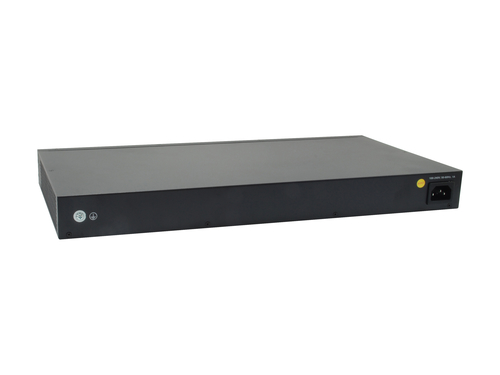

LevelOne KILBY 28-Port L2 Managed Gigabit Switch, 4 x SFP
Model GEL-2861EAN 4015867198063
83 specifications
- Memory32 MB
- Noise0 dB
- Weight2.2 kg
- ColourBlack
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity24
Overview
- Memory
- 32 MB
- Noise
- 0 dB
- Weight
- 2.2 kg
- Colour
- Black
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Brand
- LevelOne
- Category
- Network Switch
- Model
- GEL-2861
- Part number
- GEL-2861
- EAN / UPC
- 4015867198063
- Also known as
- LevelOne KILBY 28-Port L2 Managed Gigabit Switch, 4 x SFP
Specifications
83 specifications in 18 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP module slots quantity | 4 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Cable length detection | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, Port-based VLAN |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Path MTU discovery | Yes |
| Packet buffer memory | 4.1 MB |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP snooping, DHCP relay, DHCP client |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| DoS attack prevention | Yes |
| MAC address filtering | Yes |
| Neighbor discovery snooping | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Static port security | Yes |
Multicast features
| Specification | Value |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | v1/v2 |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Console / SNMP/ Web / Telent / NTP / SNTP |
| Supported network protocols | IPv4/IPv6 |
| IPv4 & IPv6 features | IPv6 ping, IPv6 tracert, IPv6 Telnet, Dual stack IPv4/IPv6 |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Activity, Link |
Performance
| Specification | Value |
|---|---|
| Internal memory | 32 MB |
| Firmware upgradeable | Yes |
| Noise level | 0 dB |
| Telnet | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 20 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 68.242 BTU/h |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 44 mm |
| Height | 440 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45) |
| Quick start guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 405 mm |
| Package depth | 80 mm |
| Package height | 580 mm |
| Package weight | 3.2 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | CE classA,FCC,VCCI,UL,BSMI,EN 60950-1:2006+A |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Master (outer) case width | 435 mm |
| Master (outer) case length | 340 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 600 mm |
| Master (outer) case gross weight | 14.3 kg |
| Products per master (outer) case | 4 pc(s) |
