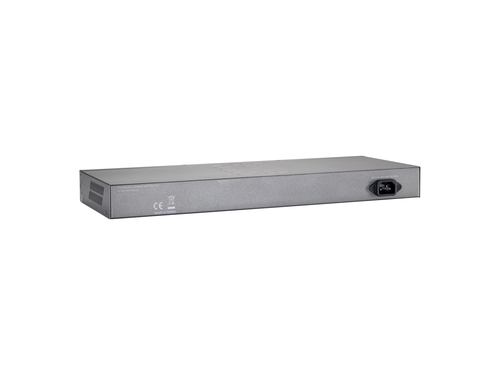

LevelOne 26-Port L2 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Ports SFP

LevelOne 26-Port L2 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Ports SFP

Model GEL-2671EAN 846359032435

65 specifications

Weight2.4 kg
ColourGrey, Metallic
Switch typeManaged
Basic switching RJ-45 Ethernet ports quantity24
Copper ethernet cabling technology10BASE-T, 100BASE-T, 1000BASE-T
MAC address table8192 entries

See all specifications

Overview

Weight: 2.4 kg
Colour: Grey, Metallic
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
MAC address table: 8192 entries

Brand: LevelOne
Category: Network Switch
Model: GEL-2671
Part number: GEL-2671
EAN / UPC: 846359032435, 4015867187722, 5050914834210
Also known as: LevelOne 26-Port L2 Managed Gigabit Ethernet Switch, 4 Ports SFP/RJ45 Combo, 2 Ports SFP

Specifications

65 specifications in 15 groups

Management features

Specification	Value
Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
System event log	Yes

Ports & interfaces

Specification	Value
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	6
Fiber optic connector	SFP
Console port	RS-232
Power connector	DC-in jack

Network

Specification	Value
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring	Yes
Broadcast storm control	Yes
Cable length detection	Yes
Link aggregation	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, Port-based VLAN

Data transmission

Specification	Value
MAC address table	8192 entries
Switching capacity	52 Gbit/s
Store-and-forward	Yes
Number of trunks	25
Number of queues	8
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet buffer memory	0.512 MB

Security

Specification	Value
DHCP features	DHCP server, DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
MAC address filtering	Yes
SSH/SSL support	Yes

Multicast features

Specification	Value
Multicast support	Yes

Design

Specification	Value
Rack mounting	Yes
Product colour	Grey, Metallic
Reset button	Yes
LED indicators	Activity, Link, Power

Power

Specification	Value
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	22.8 W

Power over Ethernet (PoE)

Specification	Value
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	442 mm
Depth	170.3 mm
Height	44 mm
Weight	2.4 kg

Packaging content

Specification	Value
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes

Packaging data

Specification	Value
Package type	Box
Resource CD	Yes
Rubber feet	Yes
Package width	534 mm
Package depth	255 mm
Package height	95 mm
Package weight	3.15 kg

Certificates

Specification	Value
Certification	FCC Part 15 Class A, CE, RoHS

Logistics data

Specification	Value
Country of origin	Taiwan
