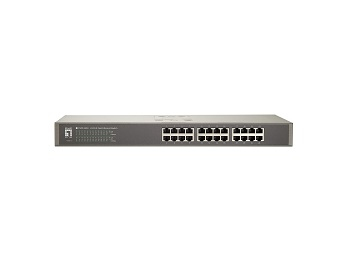

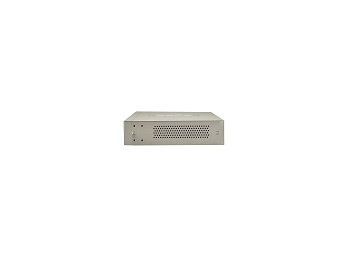

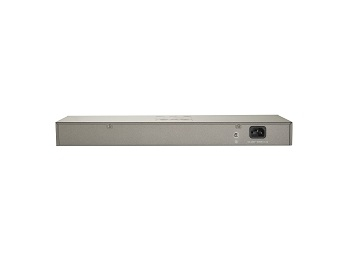

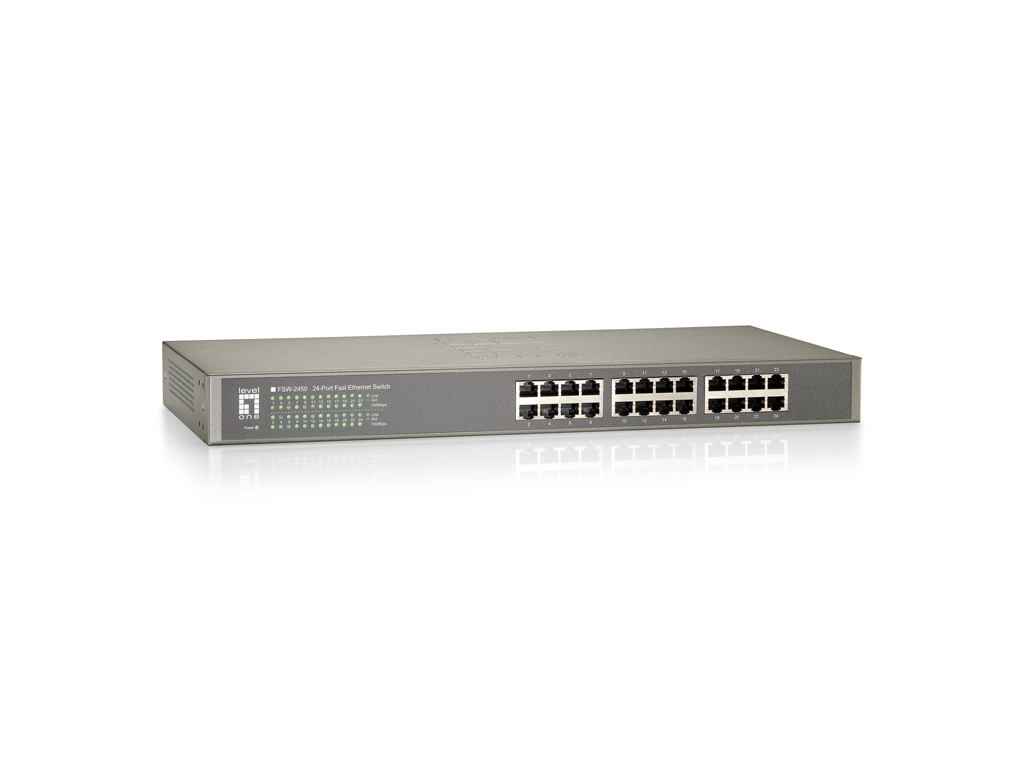

LevelOne 24-Port Fast Ethernet Switch
Model FSW-2450EAN 8787420055972
52 specifications
- Weight1.45 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- MAC address table8192 entries
Overview
- Weight
- 1.45 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- MAC address table
- 8192 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FSW-2450
- Part number
- FSW-2450
- EAN / UPC
- 8787420055972, 878742005597, 4005922209711, 4015867136454 +3 more
- Also known as
- LevelOne 24-Port Fast Ethernet Switch
Specifications
52 specifications in 15 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-learning supported | Yes |
| Rate limiting | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 4.8 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 0.16 MB |
Protocols
| Specification | Value |
|---|---|
| Switching protocols | CSMA, CD |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Maximum cable length | 100 m |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 10 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 440 mm |
| Height | 44 mm |
| Weight | 1.45 kg |

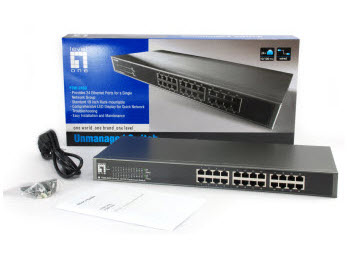

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 224 mm |
| Package depth | 486 mm |
| Package height | 77 mm |
| Package weight | 2.13 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Master (outer) case width | 405 mm |
| Master (outer) case length | 500 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 11.6 kg |
