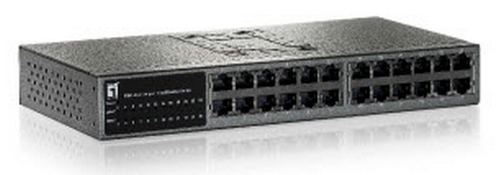

LevelOne FSW-2421 network switch Unmanaged Black
Model FSW-2421EAN 4015867125885
29 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FSW-2421
- Part number
- FSW-2421
- EAN / UPC
- 4015867125885
- Also known as
- LevelOne FSW-2421 network switch Unmanaged Black
Specifications
29 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|

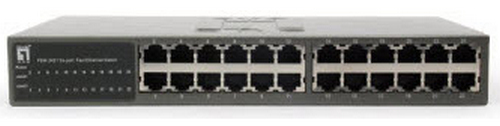

| Basic switching RJ-45 Ethernet ports quantity | 24 |

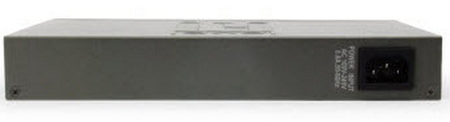

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 4.8 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.192 MB |
Protocols
| Specification | Value |
|---|---|
| Switching protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 19 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 250 x 132 x 37 mm |
| Connectivity technology | Wired |
| Networking features | Fast Ethernet |
| Power requirements | 100 - 240 VAC, 50/60 Hz |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
