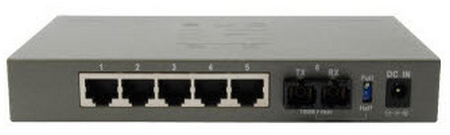

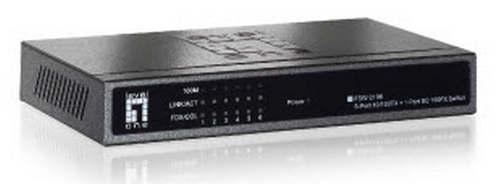

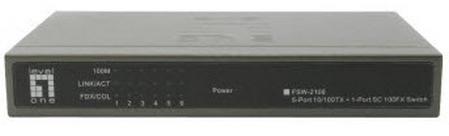

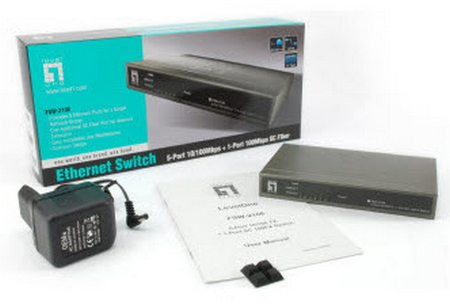

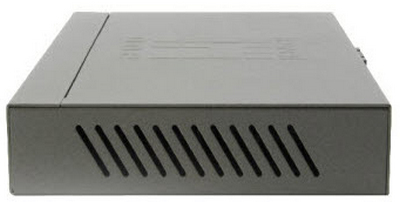

LevelOne FSW-2106 network switch Unmanaged
Model FSW-2106EAN 4015867131336
31 specifications
- Speed0.1 Gbit/s
- ConnectivityWired
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table2000 entries
Overview
- Speed
- 0.1 Gbit/s
- Connectivity
- Wired
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 2000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FSW-2106
- Part number
- FSW-2106
- EAN / UPC
- 4015867131336
- Also known as
- LevelOne FSW-2106 network switch Unmanaged
Specifications
31 specifications in 11 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Fiber ports quantity | 1 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 2000 entries |
| Supported data transfer rates | 10/100 Mbps |
| Switching capacity | 0.2 Gbit/s |
| Store-and-forward | Yes |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.096 MB |
Protocols
| Specification | Value |
|---|---|
| Switching protocols | CSMA/CD |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 6 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 100 x 164 x 26 mm |
| Connectivity technology | Wired |
| Bandwidth | 0.2 Gbit/s |
| Networking features | Fast Ethernet |
| Packet transfer speed | 14880pps (10Mbps); 148800pps (100Mbps) |
| Power requirements | DC 9V, 700mA |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 32 - 113 °F |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
What people say
Reviews & ratings
LevelOne FSW-2106 network switch Unmanaged
No reviews yet
Be the first to tell others how LevelOne FSW-2106 network switch Unmanaged works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare LevelOne FSW-2106 network switch Unmanaged
All network switch comparisons- LevelOne FSW-2106 network switch Unmanaged vsLevelOne 5-Port Fast Ethernet PoE Switch, 802.3af PoE, 4 PoE OutputsCompare specs
- LevelOne FSW-2106 network switch Unmanaged vsLevelOne 5-Port Gigabit PoE SwitchCompare specs
- LevelOne FSW-2106 network switch Unmanaged vsLevelOne 50-Port Web Smart Gigabit Ethernet Switch, 2 Ports SFPCompare specs
- LevelOne FSW-2106 network switch Unmanaged vsLevelOne GSW-0891 network switch Managed L2 Power over Ethernet (PoE)Compare specs
- LevelOne FSW-2106 network switch Unmanaged vsHP Virtual Connect FlexFabric 10Gb/24-portCompare specs
- LevelOne FSW-2106 network switch Unmanaged vsZyxel GS1100-16 UnmanagedCompare specs

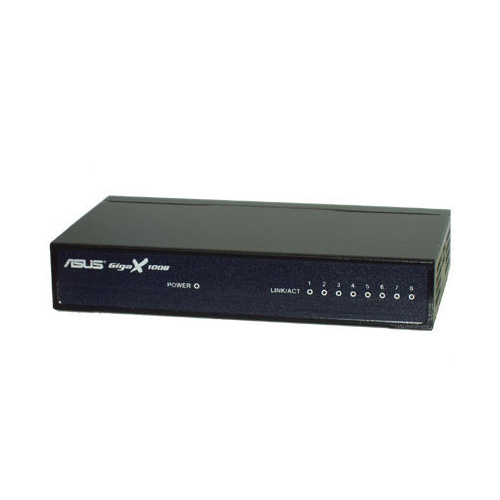

- LevelOne FSW-2106 network switch Unmanaged vsASUS GigaX1008 Unmanaged L2Compare specs
