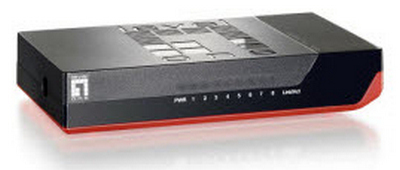

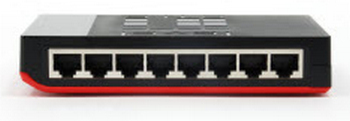

LevelOne 8-Port Fast Ethernet Switch

LevelOne 8-Port Fast Ethernet Switch

Model FSW-0811EAN 4015867140000

42 specifications
  • ColourBlack, Red
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity8
  • 10G supportNo
  • MAC address table1024 entries
  • Buffer size96 KB
See all specifications

Overview

Colour
Black, Red
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
8
10G support
No
MAC address table
1024 entries
Buffer size
96 KB
Brand
LevelOne
Model
FSW-0811
Part number
FSW-0811
EAN / UPC
4015867140000, 5050914833695, 5711045916212
Also known as
LevelOne 8-Port Fast Ethernet Switch

Specifications

42 specifications in 14 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0

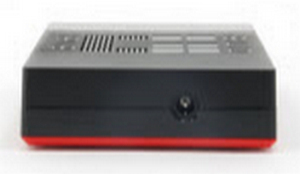

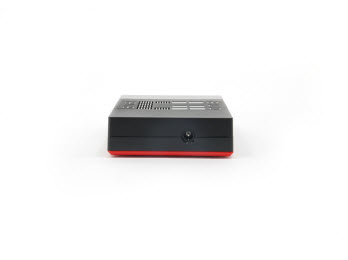

Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes

Data transmission

MAC address table1024 entries
Switching capacity1.6 Gbit/s
Store-and-forwardYes
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148000 pps

Design

Rack mountingNo
StackableNo
Product colourBlack, Red

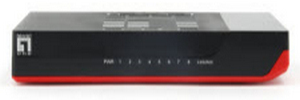

LED indicatorsActivity, Link, Power

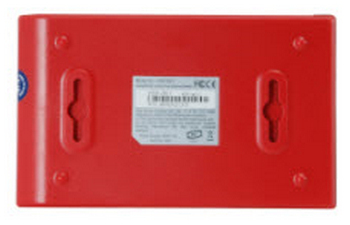

Wall mountableYes

Performance

Buffer size96 KB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage9 V
Output current0.6 A
Power consumption (typical)4.8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width85 mm
Depth141 mm
Height27.5 mm

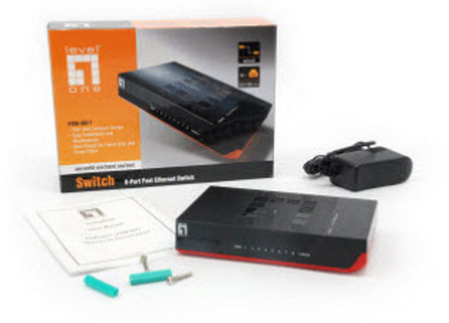

Packaging content

Quick start guideYes

Packaging data

AC adapter includedYes
Wall mounting kitYes

Certificates

CertificationCE, RoHS, FCC Class B

Logistics data

Country of originChina
