8-Port Fast Ethernet Switch
Model FSW-0808TXEAN 4015867109540
45 specifications
- ColourGrey
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity8
- 10G supportNo
- MAC address table1024 entries
- Buffer size96 KB
Overview
- Colour
- Grey
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 8
- 10G support
- No
- MAC address table
- 1024 entries
- Buffer size
- 96 KB
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FSW-0808TX
- Part number
- FSW-0808TX
- EAN / UPC
- 4015867109540, 891042001304, 4014619101603, 5050914833688 +1 more
- Also known as
- LevelOne 8-Port Fast Ethernet Switch
Specifications
45 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

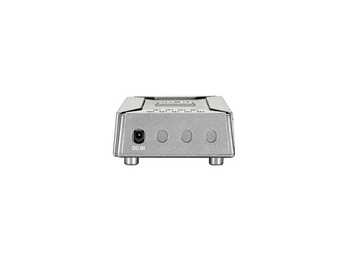

| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Switching capacity | 1.6 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Grey |
| LED indicators | Activity, Link, Power |
Performance
| Specification | Value |
|---|---|
| Buffer size | 96 KB |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 5 V |
| Output current | 1 A |
| Power consumption (typical) | 2.8 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 69 mm |
| Height | 30 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package width | 75 mm |
| Package depth | 130 mm |
| Package height | 90 mm |
| Package weight | 300 g |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
