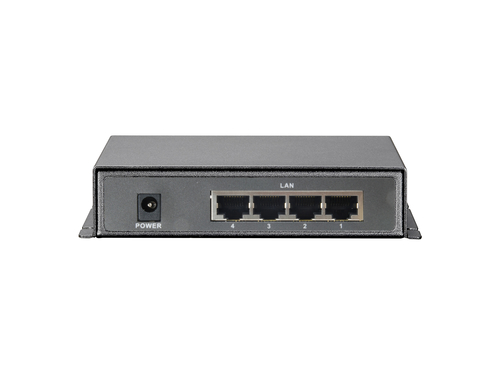

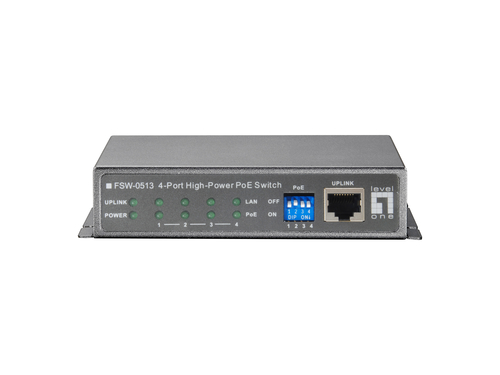

5-Port Fast Ethernet PoE Switch, 4 PoE Outputs
120W, power adapter included
Model FSW-0513EAN 8787420074928
48 specifications
- Weight800 g
- ColourBlack, Grey
- Basic switching RJ-45 Ethernet ports quantity5
- 10G supportNo
- MAC address table1024 entries
- Buffer size48 KB
Overview
- Weight
- 800 g
- Colour
- Black, Grey
- Basic switching RJ-45 Ethernet ports quantity
- 5
- 10G support
- No
- MAC address table
- 1024 entries
- Buffer size
- 48 KB
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FSW-0513
- Part number
- FSW-0513
- EAN / UPC
- 8787420074928, 151903041758, 878742007492, 4015867153567 +2 more
- Also known as
- LevelOne 5-Port Fast Ethernet PoE Switch, 4 PoE Outputs, 120W, power adapter included
Specifications
48 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat5 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 1024 entries |
| Switching capacity | 1 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 14800 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Stackable | No |
| Product colour | Black, Grey |
| LED indicators | Uplink, LAN, PoE, Power |
| On/off switch | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 48 KB |
Power
| Specification | Value |
|---|---|
| Output voltage | 56 V |
| Output current | 2.15 A |
| Power consumption (typical) | 120 W |
| Power protection features | Over current, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 1 |
| Power over Ethernet (PoE) power per port | 52 W |
| Total Power over Ethernet (PoE) budget | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 90 mm |
| Height | 28 mm |
| Weight | 800 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package width | 232 mm |
| Package depth | 148 mm |
| Package height | 80 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
