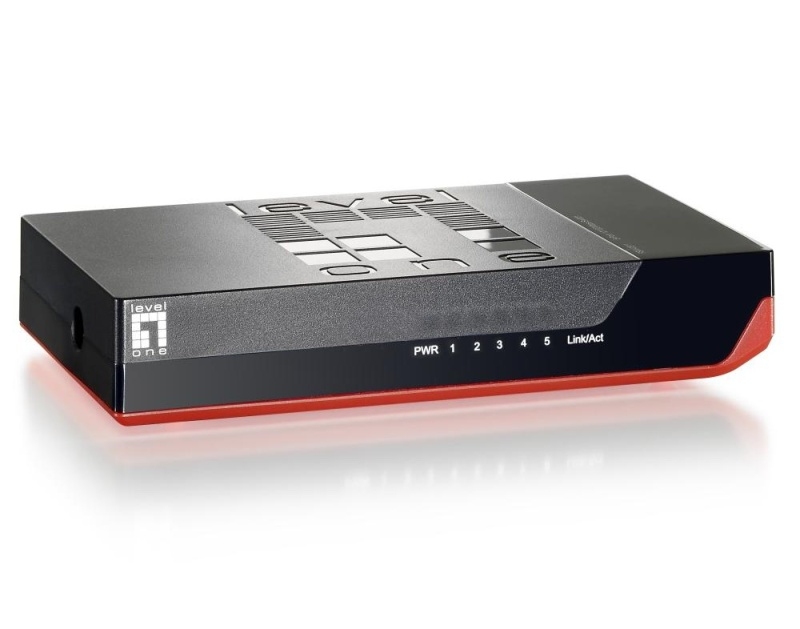

LevelOne 5-Port Fast Ethernet Switch

LevelOne 5-Port Fast Ethernet Switch

Model FSW-0511EAN 8787420036230

39 specifications
  • ColourBlack, Red
  • Switch typeUnmanaged
  • Basic switching RJ-45 Ethernet ports quantity5
  • 10G supportNo
  • MAC address table1024 entries
  • Buffer size128 KB
See all specifications

Overview

Colour
Black, Red
Switch type
Unmanaged
Basic switching RJ-45 Ethernet ports quantity
5
10G support
No
MAC address table
1024 entries
Buffer size
128 KB
Brand
LevelOne
Model
FSW-0511
Part number
FSW-0511
EAN / UPC
8787420036230, 797864296358, 878742003623, 4015867139998 +3 more
Also known as
LevelOne 5-Port Fast Ethernet Switch

Specifications

39 specifications in 12 groups

Management features

Switch typeUnmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Power connectorDC-in jack

Network

Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes

Data transmission

MAC address table1024 entries
Switching capacity1 Gbit/s
Store-and-forwardYes
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148000 pps

Design

Rack mountingNo
StackableNo
Product colourBlack, Red
LED indicatorsActivity, Link, Power
Wall mountableYes

Performance

Buffer size128 KB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage9 V
Output current0.6 A
Power consumption (max)1.93 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width141 mm
Depth85 mm
Height27.5 mm

Certificates

CertificationFCC, CE, RoHS

Logistics data

Country of originChina
