LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45
630W
Model FGP-3400W630EAN 4015867203279
58 specifications
- Weight3.1 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity32
- 10G supportNo
- MAC address table32000 entries
Overview
- Weight
- 3.1 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 32
- 10G support
- No
- MAC address table
- 32000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FGP-3400W630
- Part number
- FGP-3400W630
- EAN / UPC
- 4015867203279
- Also known as
- LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45, 630W
Specifications
58 specifications in 14 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 32 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 32 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 10.4 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet buffer memory | 8 MB |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | LAN, PoE, Power, Uplink |
| On/off switch | Yes |
| Regulatory Approvals | EMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013;EMS: EN55024:2010, IEC61000-4-2:2008, IEC61000-4 3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004 |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 74000 h |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 32 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 630 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 195 mm |
| Depth | 480 mm |
| Height | 45 mm |
| Weight | 3.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
| Rubber feet | Yes |
| Package width | 255 mm |
| Package depth | 534 mm |
| Package height | 95 mm |
| Package weight | 3.6 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class A, CE |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 510 mm |
| Master (outer) case length | 555 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 19.5 kg |
| Products per master (outer) case | 5 pc(s) |
What people say
Reviews & ratings
LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45
No reviews yet
Be the first to tell others how LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45

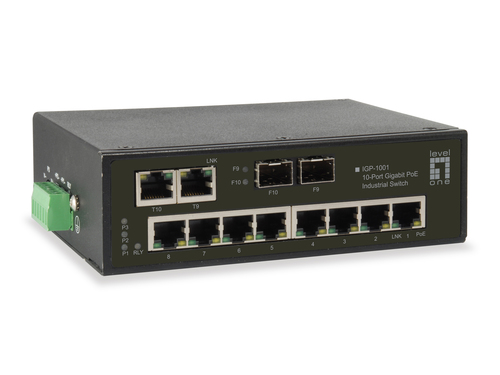

All network switch comparisons- LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45 vsLevelOne 10-Port Gigabit PoE Industrial Switch, 8 PoE Outputs, 2 x Gigabit SFP/RJ45 ComboCompare specs

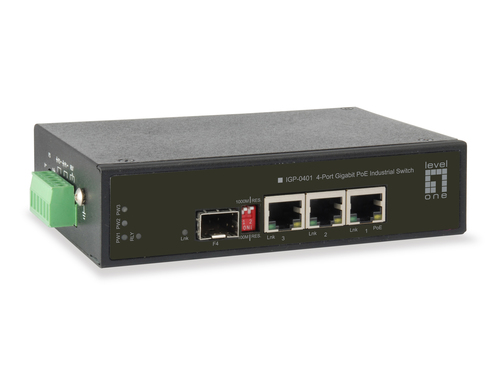

- LevelOne 34-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 32 PoE Outputs, 2 x Gigabit RJ45 vsLevelOne 4-Port Gigabit PoE Industrial Switch, 2 PoE Outputs, 1 x Gigabit SFP, 1 x Gigabit RJ45Compare specs
