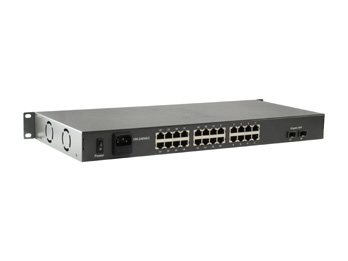

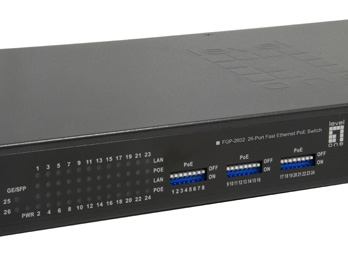

LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP
380W
Model FGP-2602W380EAN 4015867202869
50 specifications
- Weight2.9 kg
- ColourBlack
- Switch typeUnmanaged
- Basic switching RJ-45 Ethernet ports quantity26
- Full duplexYes
- MAC address table4000 entries
Overview
- Weight
- 2.9 kg
- Colour
- Black
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 26
- Full duplex
- Yes
- MAC address table
- 4000 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FGP-2602W380
- Part number
- FGP-2602W380
- EAN / UPC
- 4015867202869
- Also known as
- LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP, 380W
Specifications
50 specifications in 13 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Unmanaged |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |

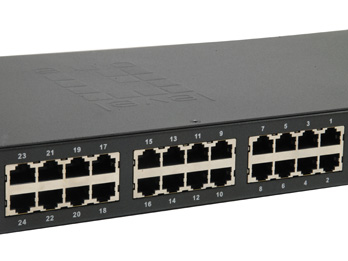

| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |

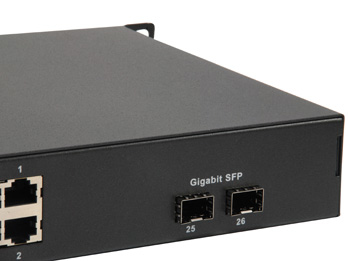

| SFP module slots quantity | 2 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat7 |
| Full duplex | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 8.8 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | LAN, PoE, Power, Uplink |
| Safety | FCC Class A, CE |
| Regulatory Approvals | EMI:EN55032:2012+AC:2013, EN55022:2010+AC:2011, AS/NZS CISPR 22 Amdt. (2010), EN61000-3-2:2014, EN61000-3-3:2013 EMS:EN55024:2010, IEC61000-4-2:2008, IEC61000-4-3:2006+A1:2007+A2:2010, IEC61000-4-4:2012, IEC61000-4-5:2005, IEC61000-4-6:2013, IEC61000-4-8:2009, IEC61000-4-11:2004 |
Performance
| Specification | Value |
|---|---|
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 50000 h |
Power
| Specification | Value |
|---|---|

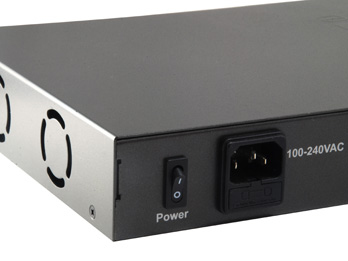

| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power protection features | Over current, Over voltage, Overheating |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 380 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 44 mm |
| Height | 440 mm |
| Weight | 2.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 260 mm |
| Package depth | 95 mm |
| Package height | 540 mm |
| Package weight | 3.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP

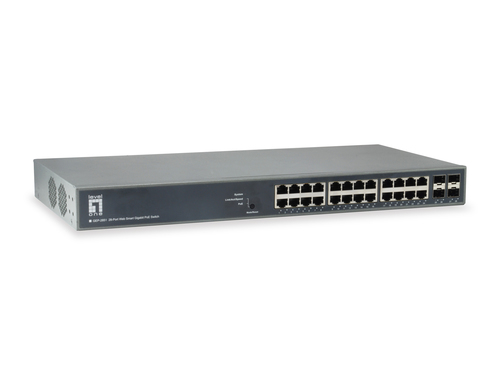

Compare any products- LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP vsLevelOne TURING 28-Port Web Smart Gigabit PoE Switch, 24 PoE Outputs, 4 x SFPCompare specs

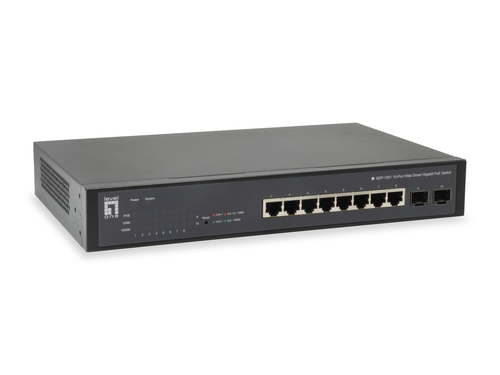

- LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP vsLevelOne 10-Port Web Smart Gigabit Switch, 2 x Gigabit SFPCompare specs
- LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP vsLevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFPCompare specs
- LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP vsLevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFPCompare specs

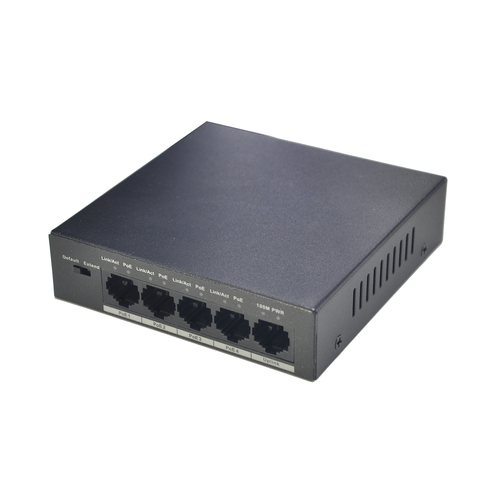

- LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP vsDahua Technology DH-PFS3005-4P-58 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) BlackCompare specs

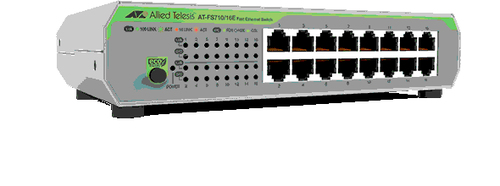

- LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP vsAllied Telesis FS710/16E Unmanaged Fast Ethernet (10/100) 1U Green, GreyCompare specs

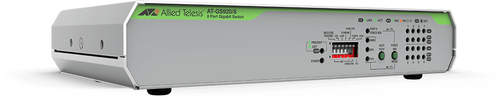

- LevelOne 26-Port Fast Ethernet PoE Switch, 24 PoE Outputs, 2 x Gigabit SFP vsAllied Telesis AT-GS920/8 network switch Unmanaged Gigabit Ethernet (10/100/1000) 1U GreyCompare specs
