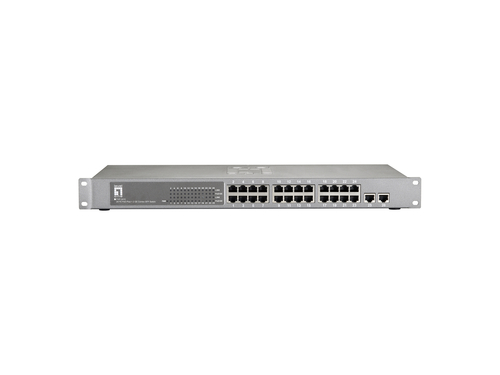

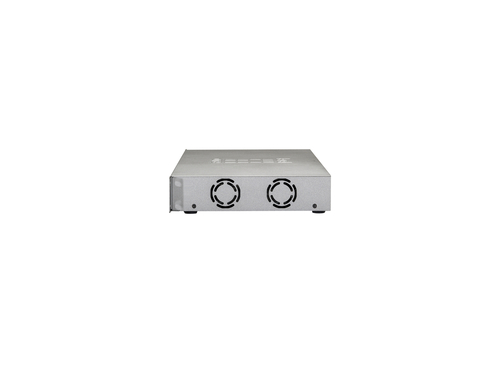

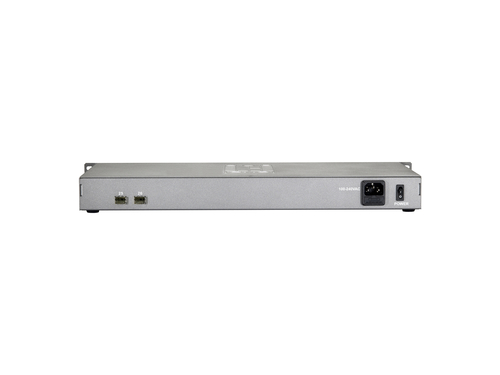

LevelOne 26-Port Fast Ethernet PoE Switch, 2 x Gigabit SFP/RJ45 Combo, 802.3at/af PoE, 24 PoE Outputs
240W
Model FGP-2410EAN 4015867170144
50 specifications
- Weight3.8 kg
- ColourGrey
- Basic switching RJ-45 Ethernet ports quantity24
- 10G supportNo
- Fiber ethernet cabling technology1000BASE-X
- MAC address table4096 entries
Overview
- Weight
- 3.8 kg
- Colour
- Grey
- Basic switching RJ-45 Ethernet ports quantity
- 24
- 10G support
- No
- Fiber ethernet cabling technology
- 1000BASE-X
- MAC address table
- 4096 entries
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FGP-2410
- Part number
- FGP-2410
- EAN / UPC
- 4015867170144, 5050914833404
- Also known as
- LevelOne 26-Port Fast Ethernet PoE Switch, 2 x Gigabit SFP/RJ45 Combo, 802.3at/af PoE, 24 PoE Outputs, 240W
Specifications
50 specifications in 14 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| SFP module slots quantity | 2 |
| Fiber optic connector | SFP |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
Optical fiber
| Specification | Value |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4096 entries |
| Switching capacity | 8.8 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Design
| Specification | Value |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| On/off switch | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 352 KB |
Power
| Specification | Value |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output current | 5 A |
| Power consumption (typical) | 250 W |
| Power protection features | Over current, Short circuit |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Depth | 200 mm |
| Height | 44 mm |
| Weight | 3.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
Packaging data
| Specification | Value |
|---|---|
| Rubber feet | Yes |
| Package width | 534 mm |
| Package depth | 255 mm |
| Package height | 95 mm |
| Package weight | 1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Harmonized System (HS) code | 85176990 |
