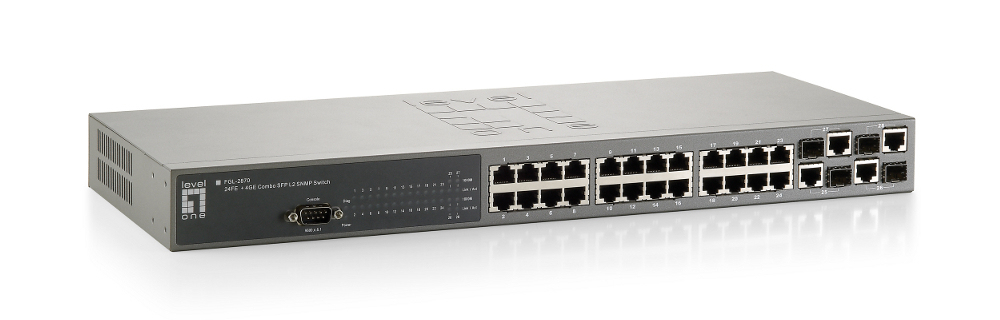

LevelOne FGL-2870 network switch Managed L2 Grey
Model FGL-2870EAN 4015867155905
41 specifications
- Speed1 Gbit/s
- ConnectivityWired
- Weight2 kg
- ColourGrey
- Switch typeManaged
- Basic switching RJ-45 Ethernet ports quantity28
Overview
- Speed
- 1 Gbit/s
- Connectivity
- Wired
- Weight
- 2 kg
- Colour
- Grey
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 28
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FGL-2870
- Part numbers
- FGL-2870, FGL-2870 1+ KIT
- EAN / UPC
- 4015867155905
- Also known as
- LevelOne FGL-2870 network switch Managed L2 Grey
Specifications
41 specifications in 12 groups
Management features
| Specification | Value |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Combo SFP ports quantity | 4 |
| SFP/SFP+ slots quantity | 4 |
| Fiber optic connector | SFP |
| Console port | RS-232 |
| Power connector | DC-in jack |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x |
| 10G support | No |
| Flow control support | Yes |
| Link aggregation | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Number of VLANs | 255 |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
Security
| Specification | Value |
|---|---|
| DHCP features | DHCP server |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Security algorithms | SSH, SSL/TLS |
Protocols
| Specification | Value |
|---|---|
| Management protocols | CLI, SNMP, SNTP |
Design
| Specification | Value |
|---|---|
| Stackable | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
Performance
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 430 x 171 x 44 mm |
| Connectivity technology | Wired |
| Power LED | Yes |
| Power requirements | 110 - 240V, AC, 50-60Hz |
| Wi-Fi | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2 kg |
