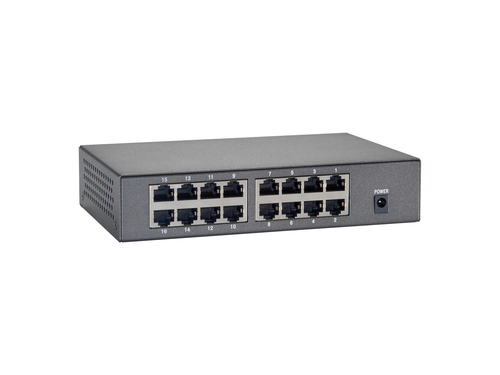

LevelOne 16-Port Fast Ethernet PoE Switch
90W
Model FEP-1600W90EAN 4015867199831
51 specifications
- Weight2.1 kg
- ColourGrey
- Basic switching RJ-45 Ethernet ports quantity16
- 10G supportNo
- MAC address table4000 entries
- Buffer size160 KB
Overview
- Weight
- 2.1 kg
- Colour
- Grey
- Basic switching RJ-45 Ethernet ports quantity
- 16
- 10G support
- No
- MAC address table
- 4000 entries
- Buffer size
- 160 KB
- Brand
- LevelOne
- Category
- Network Switch
- Model
- FEP-1600W90
- Part number
- FEP-1600W90
- EAN / UPC
- 4015867199831
- Also known as
- LevelOne 16-Port Fast Ethernet PoE Switch, 90W
Specifications
51 specifications in 13 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
Data transmission
| Specification | Value |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 3.2 Gbit/s |
| Store-and-forward | Yes |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (100 Mbps) | 148000 pps |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| LED indicators | Activity, PoE, Power |
| On/off switch | Yes |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Buffer size | 160 KB |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| DC input voltage | 56 V |
| Power consumption (typical) | 90 W |
Power over Ethernet (PoE)
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 82 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 188 mm |
| Depth | 118 mm |
| Height | 38 mm |
| Weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
Packaging data
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Package type | Box |
| Package width | 534 mm |
| Package depth | 255 mm |
| Package height | 95 mm |
| Package weight | 2.5 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, RoHS |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case width | 555 mm |
| Master (outer) case length | 510 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 13.5 kg |
| Products per master (outer) case | 5 pc(s) |
