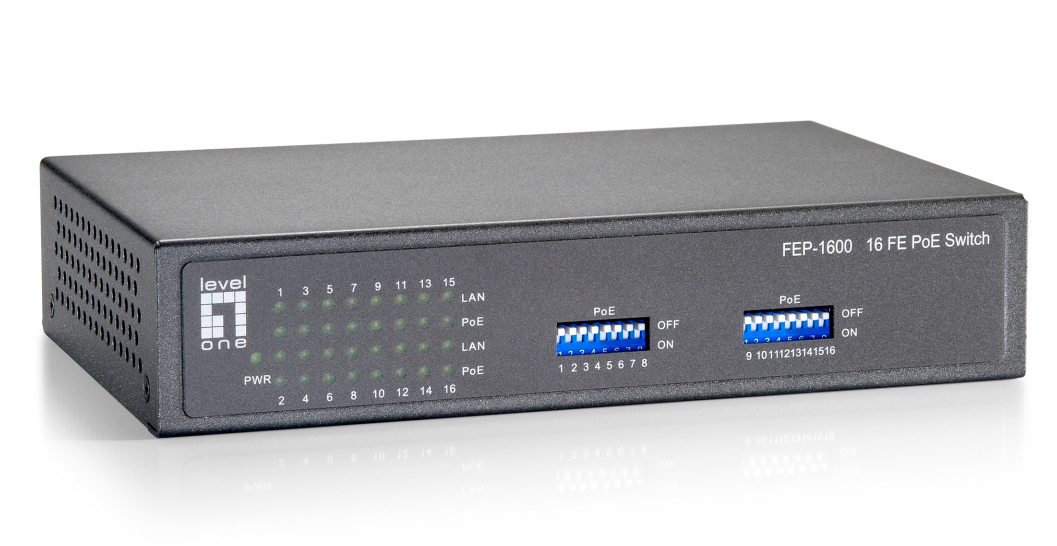

LevelOne 16-Port Fast Ethernet PoE Switch

LevelOne 16-Port Fast Ethernet PoE Switch

120W

Model FEP-1600EAN 4015867187999

43 specifications
  • Weight2.1 kg
  • ColourGrey
  • Basic switching RJ-45 Ethernet ports quantity16
  • Full duplexYes
  • MAC address table4096 entries
  • Buffer size160 KB
See all specifications

Overview

Weight
2.1 kg
Colour
Grey
Basic switching RJ-45 Ethernet ports quantity
16
Full duplex
Yes
MAC address table
4096 entries
Buffer size
160 KB
Brand
LevelOne
Model
FEP-1600
Part number
FEP-1600
EAN / UPC
4015867187999, 5050914834098
Also known as
LevelOne 16-Port Fast Ethernet PoE Switch, 120W

Specifications

43 specifications in 13 groups

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Installed SFP modules quantity0
Installed SFP+ modules quantity0

Network

Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Flow control supportYes

Data transmission

MAC address table4096 entries
Switching capacity3.2 Gbit/s
Store-and-forwardYes
Packet forwarding rate (10 Mbps)14880 pps
Packet forwarding rate (100 Mbps)148000 pps

Design

Product colourGrey
LED indicatorsActivity, Link, PoE, Power

Performance

Buffer size160 KB

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Output voltage56 V
Power protection featuresOver current, Short circuit

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget120 W

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

Weight & dimensions

Width188 mm
Depth118 mm
Height38 mm
Weight2.1 kg

Packaging content

Cables includedAC
ManualYes

Packaging data

AC adapter includedYes
Package typeBox
Package width534 mm
Package depth255 mm
Package height95 mm
Package weight2.5 kg

Certificates

CertificationFCC, CE, RoHS

Logistics data

Country of originTaiwan
Harmonized System (HS) code85176990
